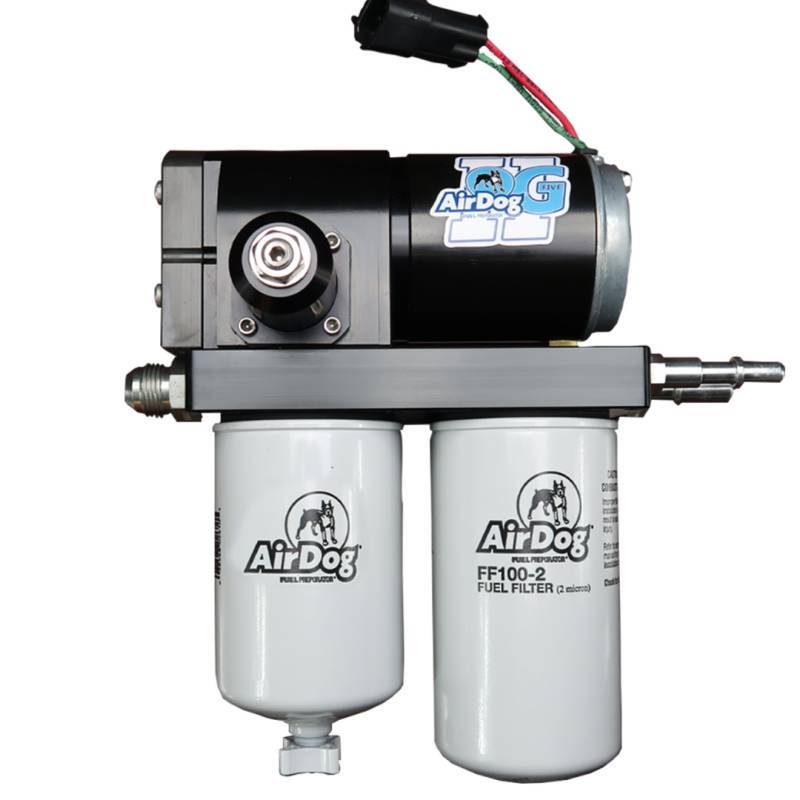

PureFlow AirDog II-5G 15-16 Chevrolet 6.6L Duramax DF-220-5G Fuel Air Separation System
A7SABC515
*Image may differ from actual product.
Not Available
Availability: All prices and availability are subject to change without prior notice.
Pricing:
$905.00
Description

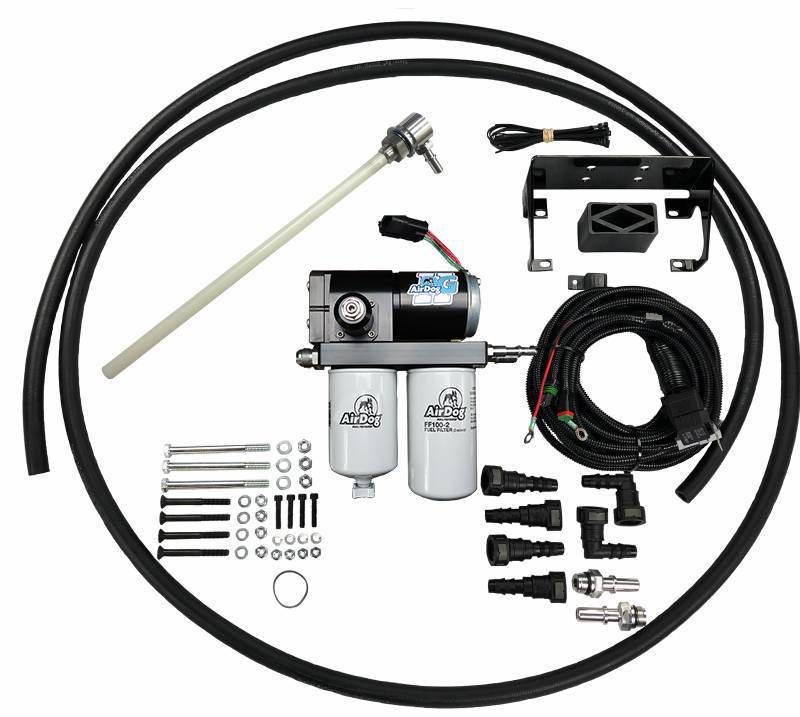

This is the AirDog® II-5G DF-220-5G fuel system for the 2015-2016 Chevy Duramax. This diesel lift pump mounts to the factory frame standoff in front of the fuel tank using our cradle bracket. A 5/8in draw straw is installed in the fuel tank to draw fuel to the pump. The pressure side connects directly to the factory 1/2in fuel line on the frame. The AirDog® Air/Vapor return is sent back to the tank through the factory 12mm” suction line once the module is modified. This is a 220GPH (Gallon Per Hour) lift pump system for heavily modified trucks (1000 HP and above). Check out our installation manual for a list of parts that are included with this kit.
Details
- A7SABC515
- A7SABC515
- AirDog by PureFlow
- Temporarily Not Available
- All prices and availability are subject to change without prior notice.
- New
Categories
Shipping Information
- Item Requires Shipping
- 22.2 lbs.
- W13.5000” x H8.0000” x L19.0000”
- Free Ground Shipping on orders over $150.00 (excludes HI and AK)
