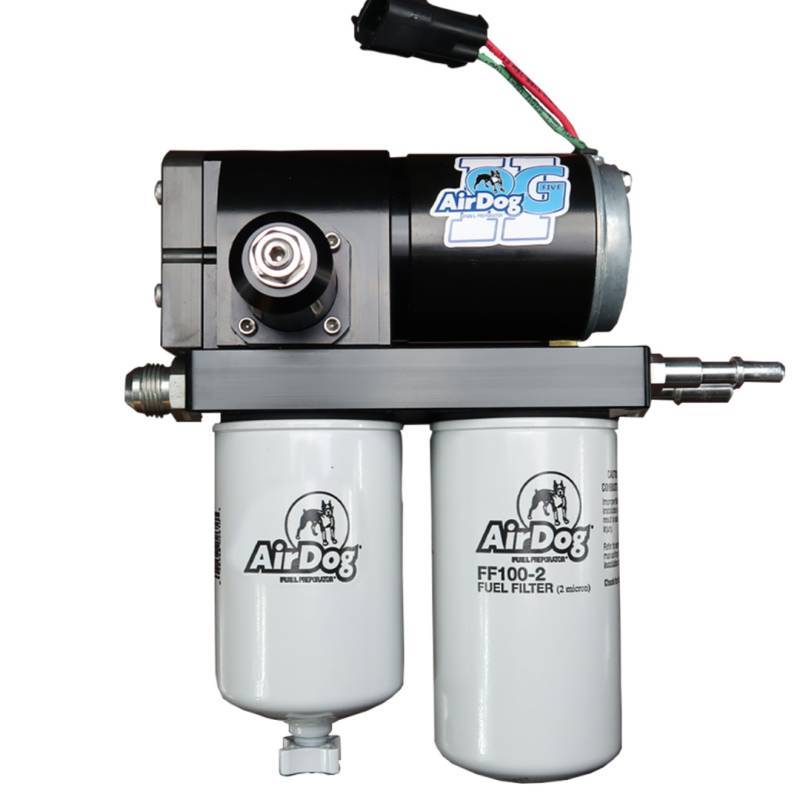

PureFlow AirDog II-5G 08-10 Ford 6.4L Powerstroke DF-165-5G Fuel Air Separation System

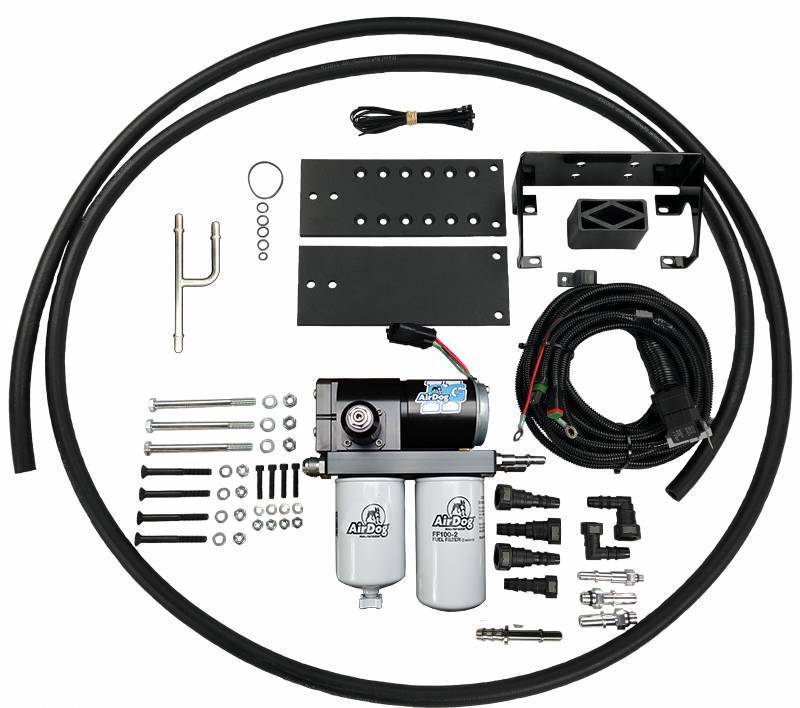

This is the AirDog II-5G DF-165-5G fuel system for the 2008-2010 Ford 6.4L Powerstroke. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. The suction side hooks up to the factory suction line on the frame rail. The pressure side connects to the factory supply line on the frame rail. This fuel pump completely bypasses the factory fuel pump. The AirDog Air/Vapor return is sent back to the tank through a return “Y” that splices the AirDog return into the factory engine return. This is a 165GPH (Gallon Per Hour) lift pump system for moderately modified trucks. Check out our installation manual for a list of parts that are included with this kit.

Specifications:

• SKU:A7SABF594
• Stock #:A7SABF594
• Items Included: Fuel Filter
• Manufacturer Part Number: A7SABF594
• Drive Type: Mechanical
• Vintage Part: No
• Weight: 27.0 lbs.
• Pressure: 165GPH
• Fuel Type: Diesel
• Brand: Airdog
• Flow Rate: 165GPH
• Type: Fuel System
• Interchange Part Number: Air Intake Filter Filters Kit System Airflow Increase Horsepower, 2008 2009 2010 08 09 10, 2008-2010 Ford F250/F350/F450 6.4L POWERSTROKE
• Voltage: 12 V
• Country/Region of Manufacture: United States
• Performance Part: Yes

Fitment:

• 2008-2010 Ford F250/F350/F450 6.4L POWERSTROKE
