17-22 Ford F250/350 4X4 Diesel 2.0in/3.0in Lift Commuter System - PAP

Overview

The Super Duty Commuter 2.0 targets best on-road ride for owners who stay mostly on pavement and light trails. Carli-SPEC 2.0″ internal-reservoir shocks (6063 aluminum, anodized, 5/8″ chrome shaft) are tuned for town, highway, and tow/haul comfort. PAP suffix = valving matched to stock rear springs or Carli progressive add-a-packs.

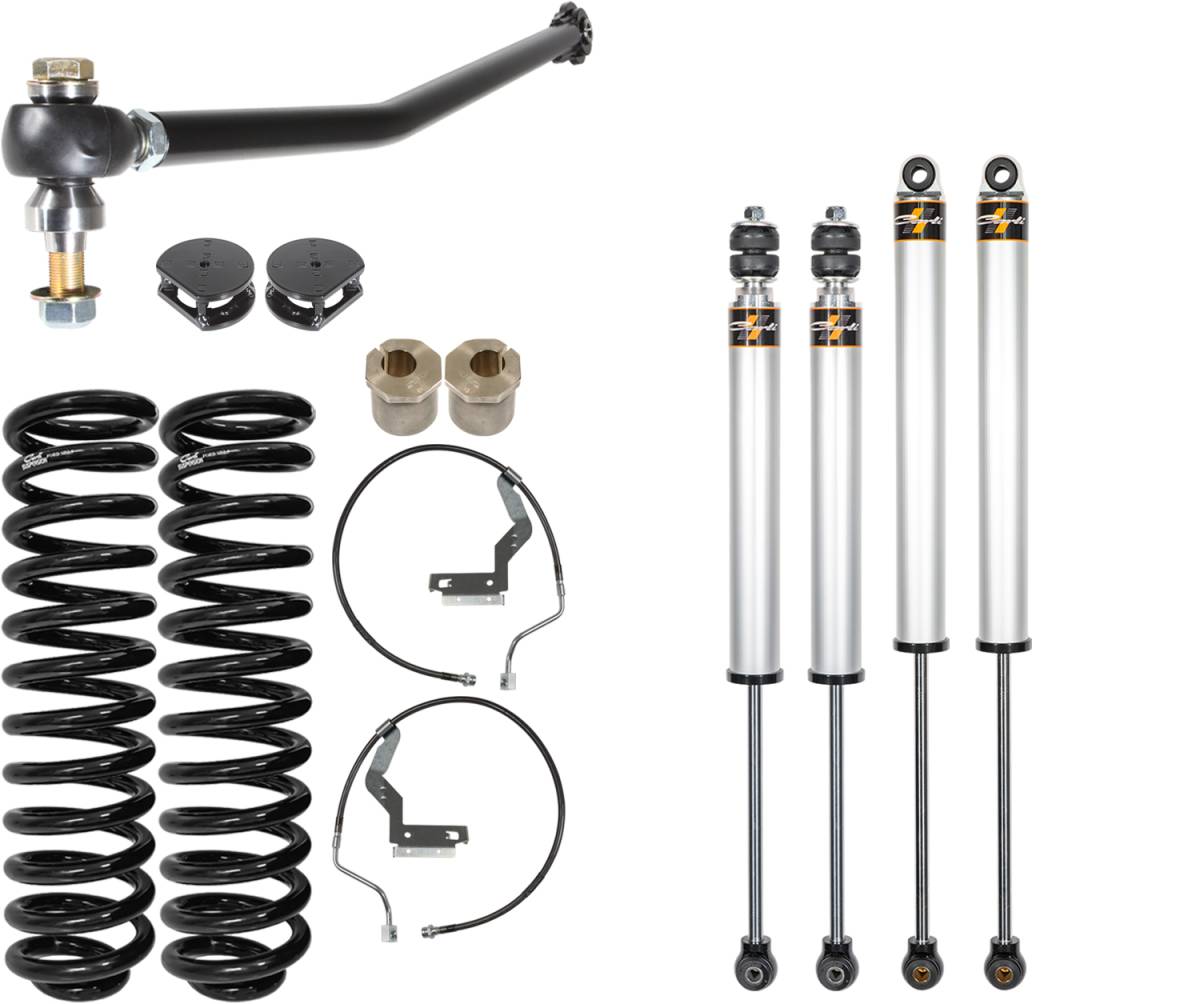

Specs / Components

• CS-FLC-05 front leveling coils
• AS-FLVLSPKG-CS20IFP-B Carli-SPEC 2.0″ IFP shocks F&R, PAP valving
• CS-FBDF-25-17 front bump drops; CS-FORDBBL-LVL-17-F front brake lines; CS-FCASTERSHIM-25; CS-FATB-17 track bar
• Lift notes (Carli root listing): ~3.5″ on 2020–23 diesel base / ~2.5″ on 2017–19 diesel base—confirm year
• Config page travel table cites ~9.5″ front / 12.3″ rear; tire guidance up to ~37×12.5″ with appropriate wheels

Why Carli

• Carli-SPEC 2.0″ internal-reservoir shocks tuned for on-road, highway, and tow/haul comfort
• Entry-friendly leveling system for owners who stay mostly on pavement / light trails
• Includes core geometry pieces (coils, track bar, caster shims, bump drops, brake lines) per kit config

Professional install available at Powertech Diesel, Idaho Falls — call 208-542-7793. Sold at MAP; no Carli discounts.
