SPE Motorsport 2017+ 6.7L Powerstroke Fuel Filter System — Short Bed

SPE 2017+ 6.7L fuel filter system, short bed

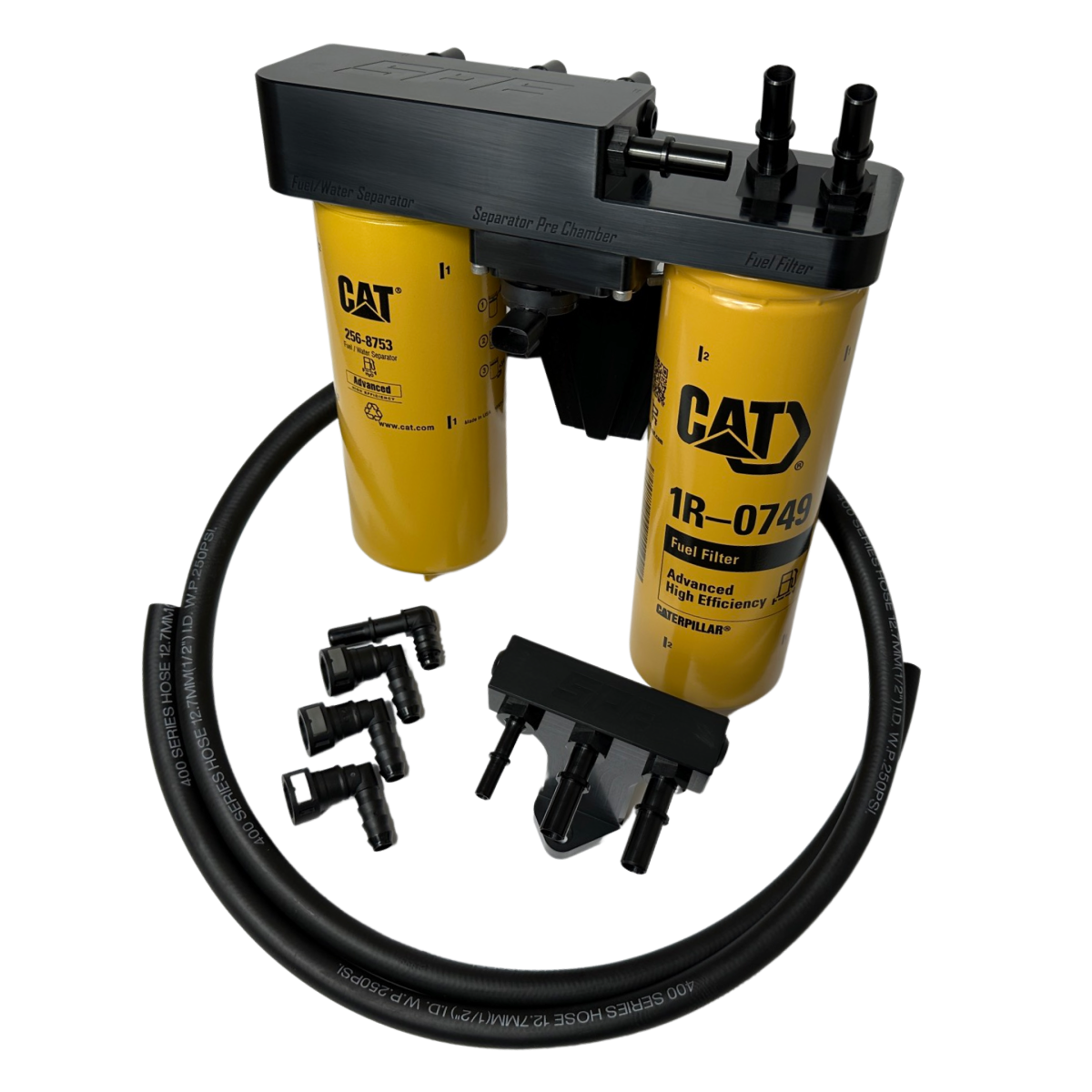

This system replaces both factory fuel filters and puts them side by side under the truck, in the factory lower filter spot. That ends the fuel mess on top of the engine. A billet manifold takes the place of the top filter, uses the factory lines, and adds extra fuel ports.

It uses a CAT 256-8753 water separator, rated 10 micron like stock but flowing over 150 gph more, and a CAT 1R0749 2 micron fuel filter in place of the 4 micron stock filter. A pre-chamber holds the factory water-in-fuel sensor ahead of the separator so water gets flagged sooner, and it has its own drain. It installs without cutting or dropping the tank.

Who it's for

2017+ 6.7L Power Stroke owners who want better filtration and easier filter changes.

Key specs (per SPE Motorsport)

What's included

• Filter base with pre-chamber
• Top-filter replacement manifold
• CAT water separator and fuel filter

Fitment notes

• Short bed version (this SKU).
• Does not fit extended cab, single cab or cab and chassis trucks, according to SPE.
• Uses the factory WIF sensor and connections.

Professional install available at Powertech Diesel, Idaho Falls — call 208-542-7793.
