5.9L Freedom Series Cummins Cylinder Head (Performance) Fleece Performance
Description

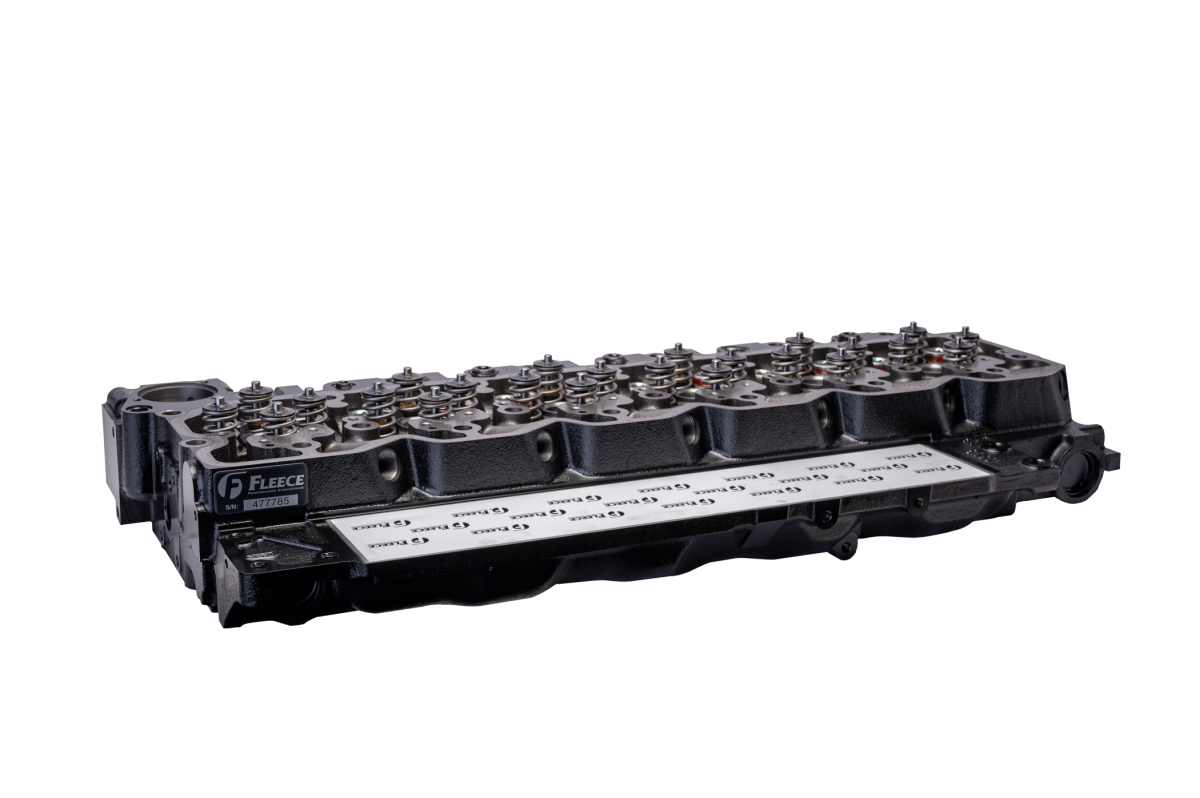

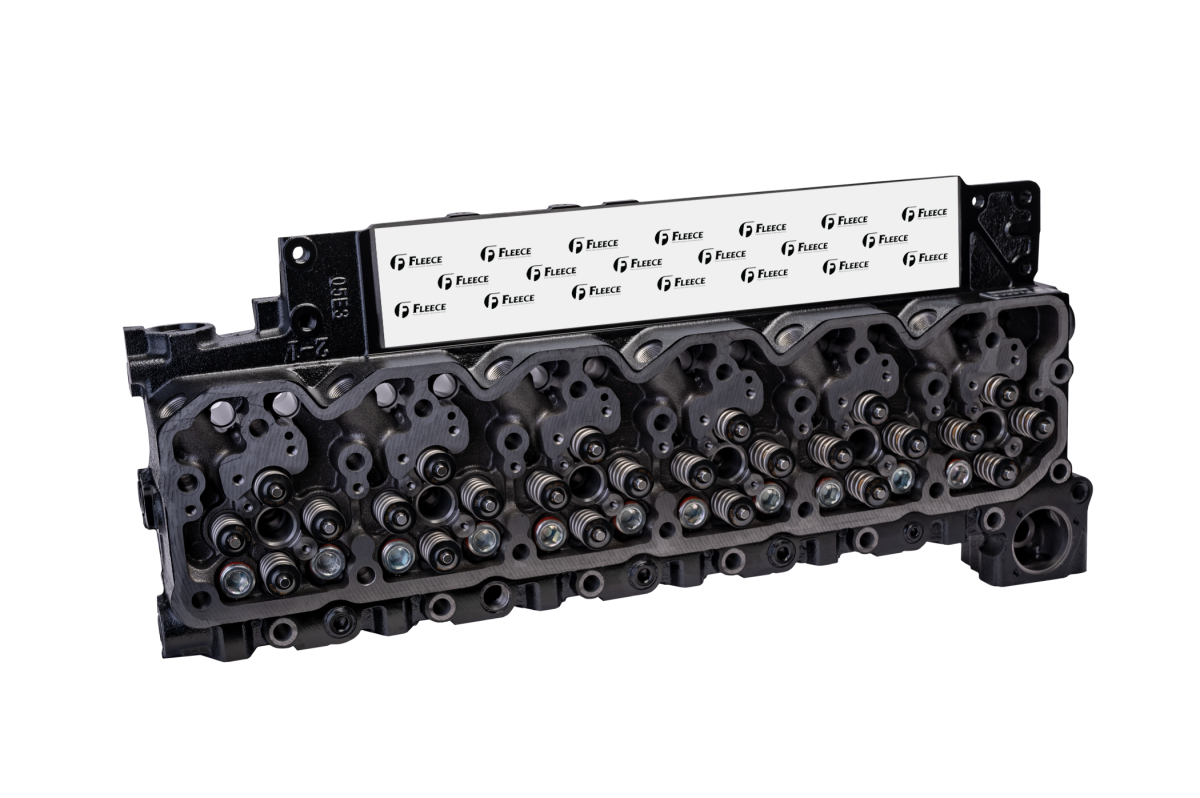

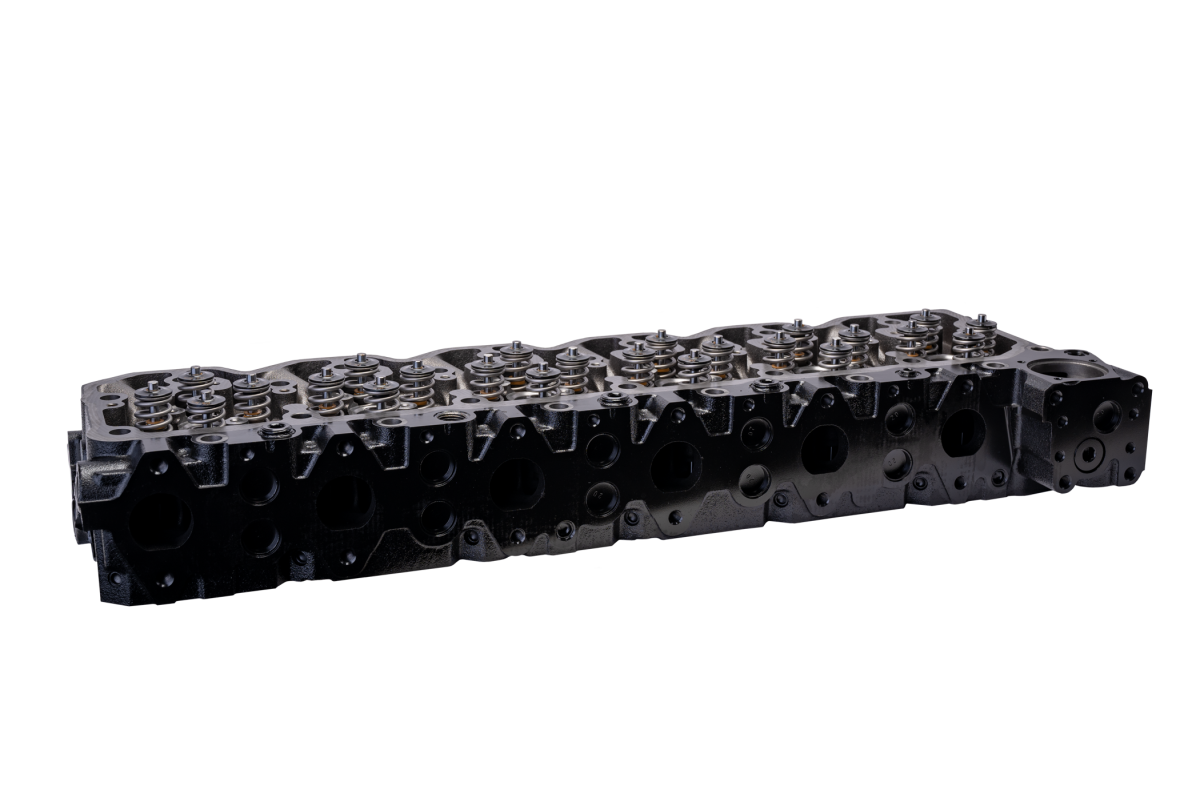

A ready-to-run Cummins head
Fleece builds its Freedom Series heads in its own cylinder head machine shop to meet or beat factory specs. Every head is inspected, pressure tested, decked and painted, and it arrives fully assembled and ready to bolt on.
Fleece swaps the factory freeze plugs for 11 screw-in plugs, so the head won't leak coolant under the valve cover. It also gets hardened, oversized press-in valve seats and new valve guide liners.
The Performance head is fire-ringed (the rings are in the head) and rated to 1,100 hp, for the most heavily built trucks, and Fleece supplies the matching fire-ring head gasket kit.
Who it's for
Owners of 2003-2007 Dodge Ram 2500/3500 with the 5.9L 24-valve Cummins who need a replacement or upgraded cylinder head.
Key specs (per Fleece)
| Engine | 5.9L Cummins, 2003-2007 |
|---|---|
| Series | Freedom Series Performance |
| Rated to (per Fleece) | 1,100 hp |
| Valves / springs | 1.300 in. stainless intake and Inconel exhaust valves; 105 lb springs; steel retainers |
| Freeze plugs | 11 screw-in |
| Valve seats | Hardened, oversized, press-in |
| Warranty | 1-year limited parts (Fleece) |
| Shipping weight | 206 lb |
What's included
- Freedom Series Performance cylinder head, fire-ringed and assembled
- Fire-ring head gasket kit (multi-layer steel gasket, 4.550 in. rings)
Fitment notes
- Fits 2003-2007 Dodge Ram 2500/3500 with the 5.9L 24-valve Cummins (per Fleece).
- Valve lash must be set during install. Back off the rocker arm adjusters first, or the head will be damaged (per Fleece).
- Use the included Fleece fire-ring gasket kit; Fleece says other aftermarket head gaskets will not work.
- If you run aftermarket head studs, the lower rocker box cover needs modifying; see the ARP install method instructions Fleece references.
Professional install available at Powertech Diesel, Idaho Falls — call 208-542-7793.
Details
- FPE-61-10006
- FPE-61-10006
- Fleece Performance
- May have a longer lead time.
- New
Shipping Information
- Item Requires Shipping
- 206.0 lbs.
- W17.0000” x H11.0000” x L35.0000”
