SureFlo Performance Sending unit for 2011-2016 Ford Powerstroke (Long Bed) Fleece Performance

Feed an external lift pump properly

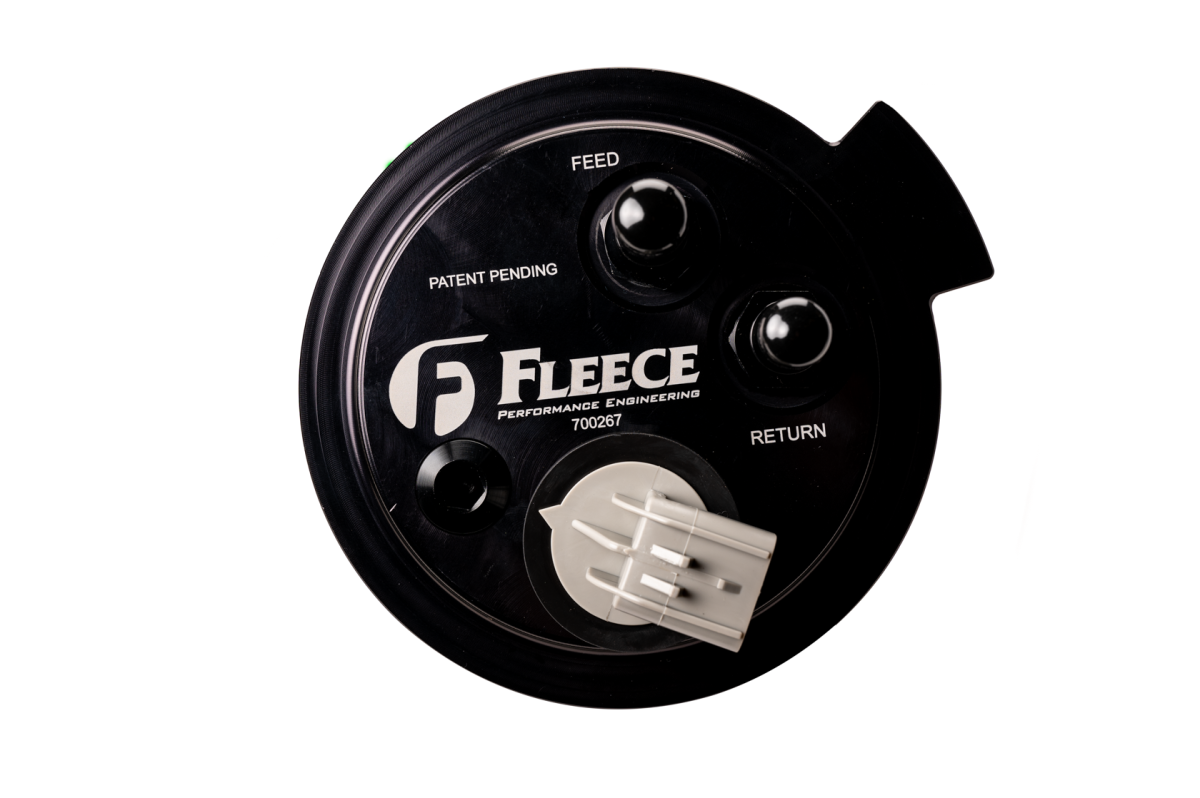

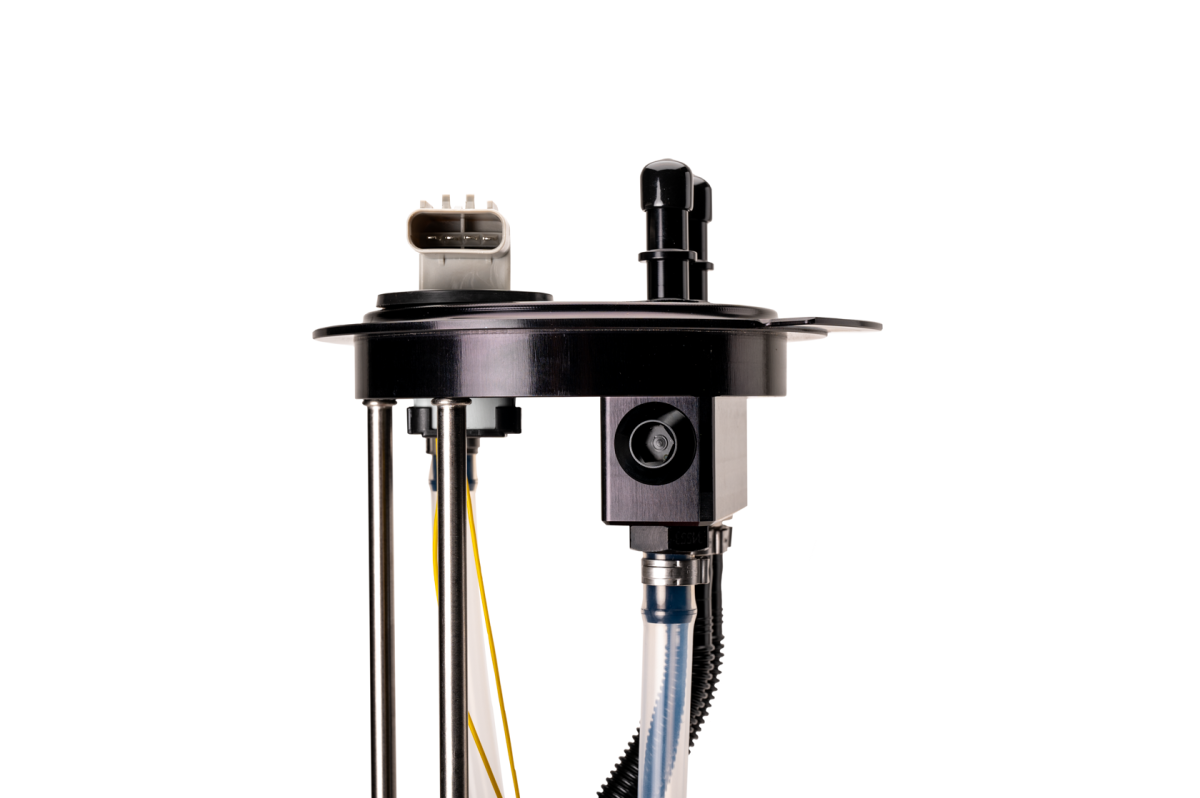

A frame-mounted aftermarket lift pump normally needs a draw straw or a sump drilled into the tank, and both can starve the pump and pull air below about a quarter tank. The SureFlo drops into the stock sending unit location instead, with factory-style quick disconnects for the stock lines and no cutting or drilling.

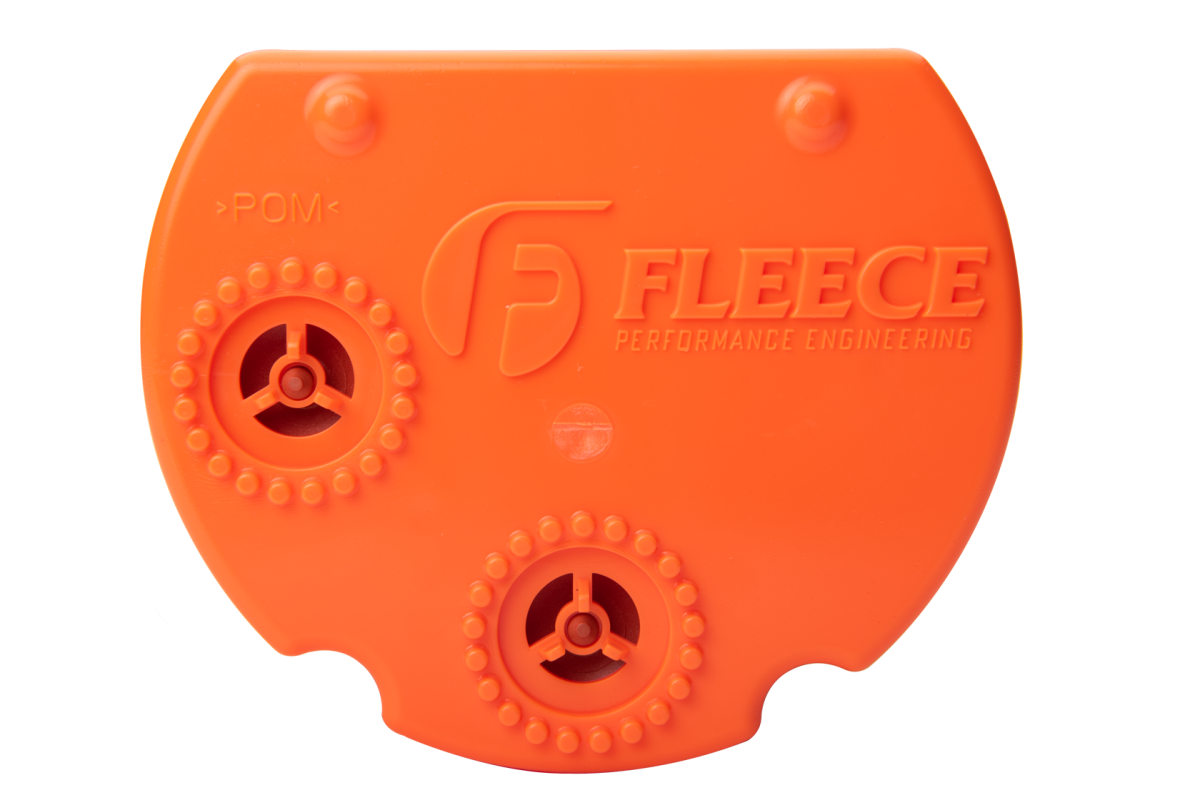

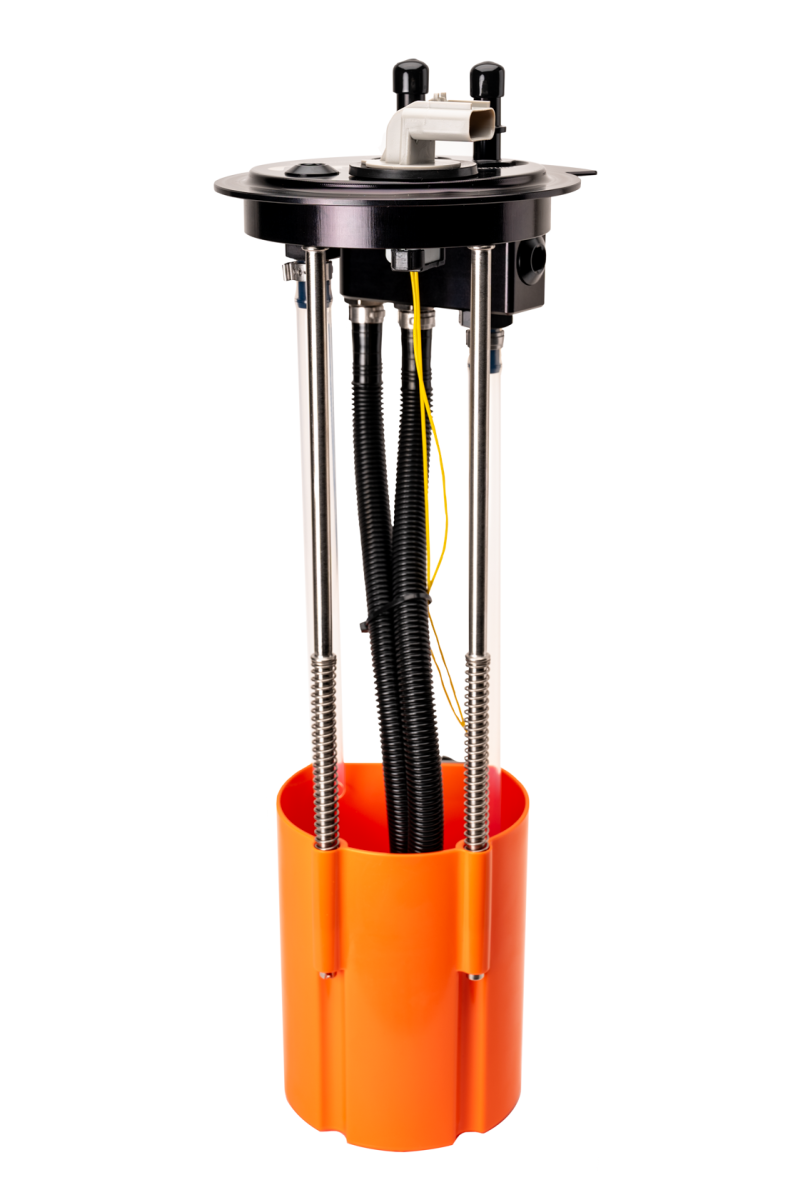

It draws from and returns to a bucket at its base, with one-way check valves that let fuel in at low levels, so the pump sees fuel instead of air. It's also a good fix for a failed level sender on trucks that never had an in-tank pump, or for running custom lines straight to the tank.

Who it's for

Owners of 2011-2016 Ford Super Duty 6.7L Power Stroke long bed trucks running an external lift pump.

Key specs (per Fleece)

What's included

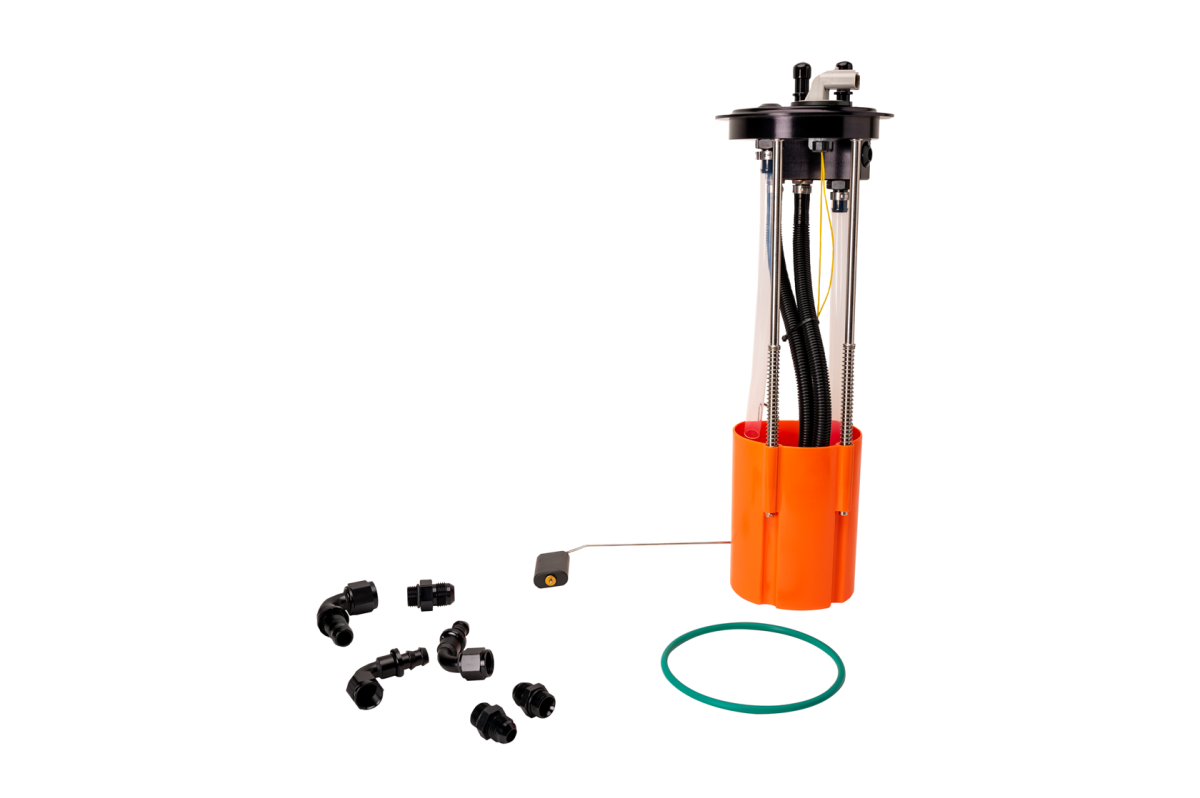

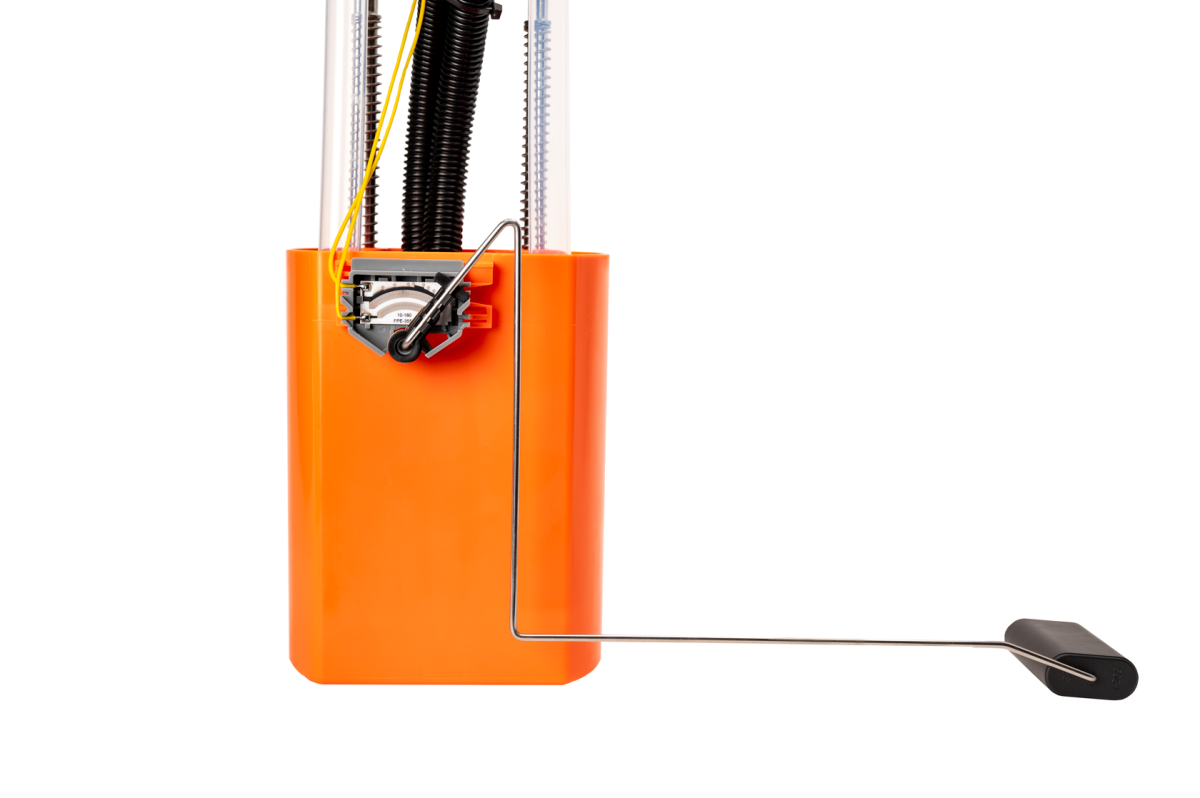

• SureFlo sending unit with new level electronics and float
• New O-ring or flange seal

Fitment notes

• Fits 2011-2016 Ford Super Duty 6.7L Power Stroke long bed (per Fleece).
• Has no pump of its own; for an in-tank pump, see the Fleece PowerFlo.
• Fleece has tested it with AirDog pumps up to 220 GPH and FASS pumps up to 200 GPH.
• Not for cab and chassis trucks.
• Fleece confirms fit with Titan and S&B aftermarket tanks.
