2014-2025 Ram 2500 4x4 Diesel Air Ride 2.5in Lift Leveling Pathfinder System

Why this system

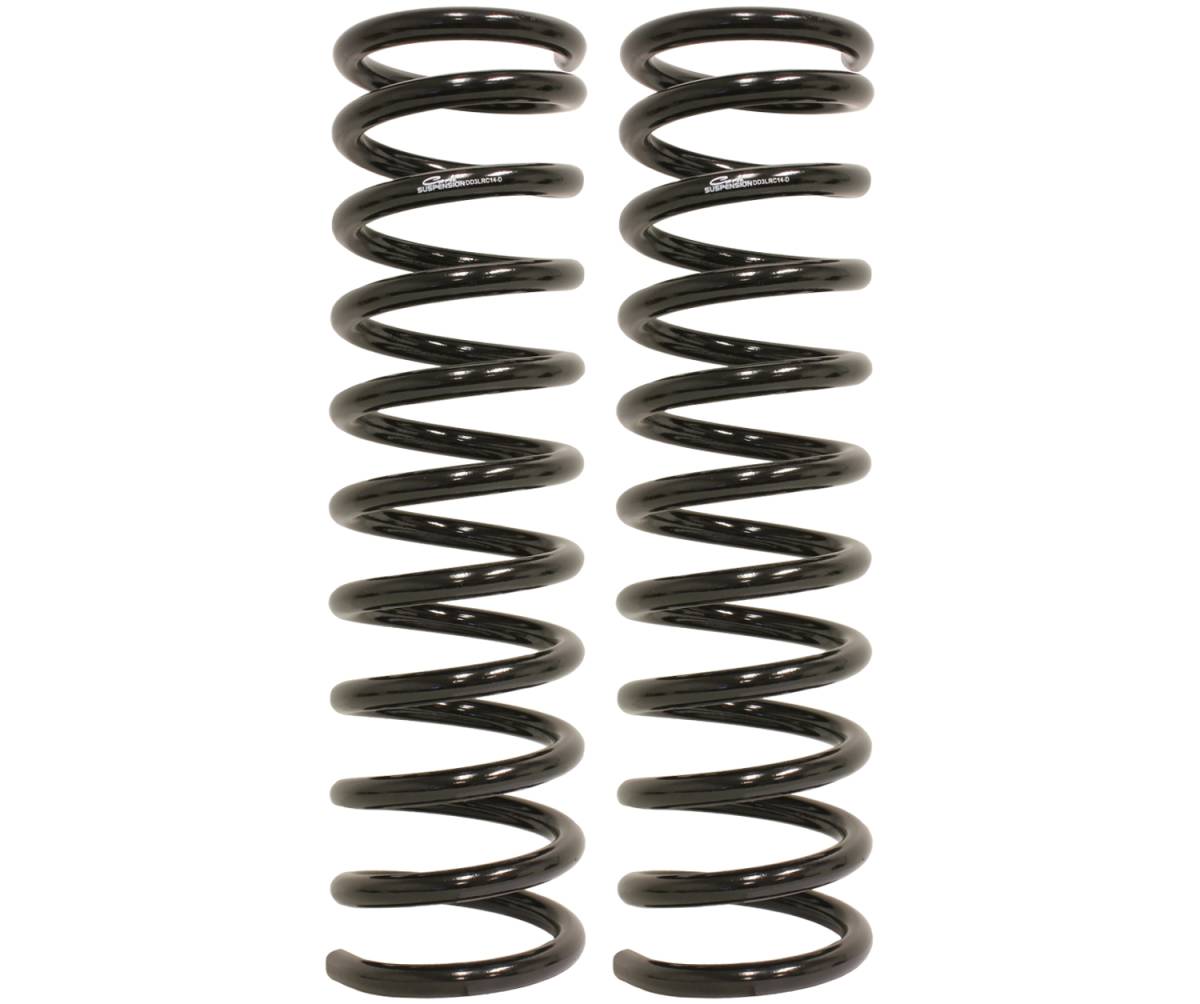

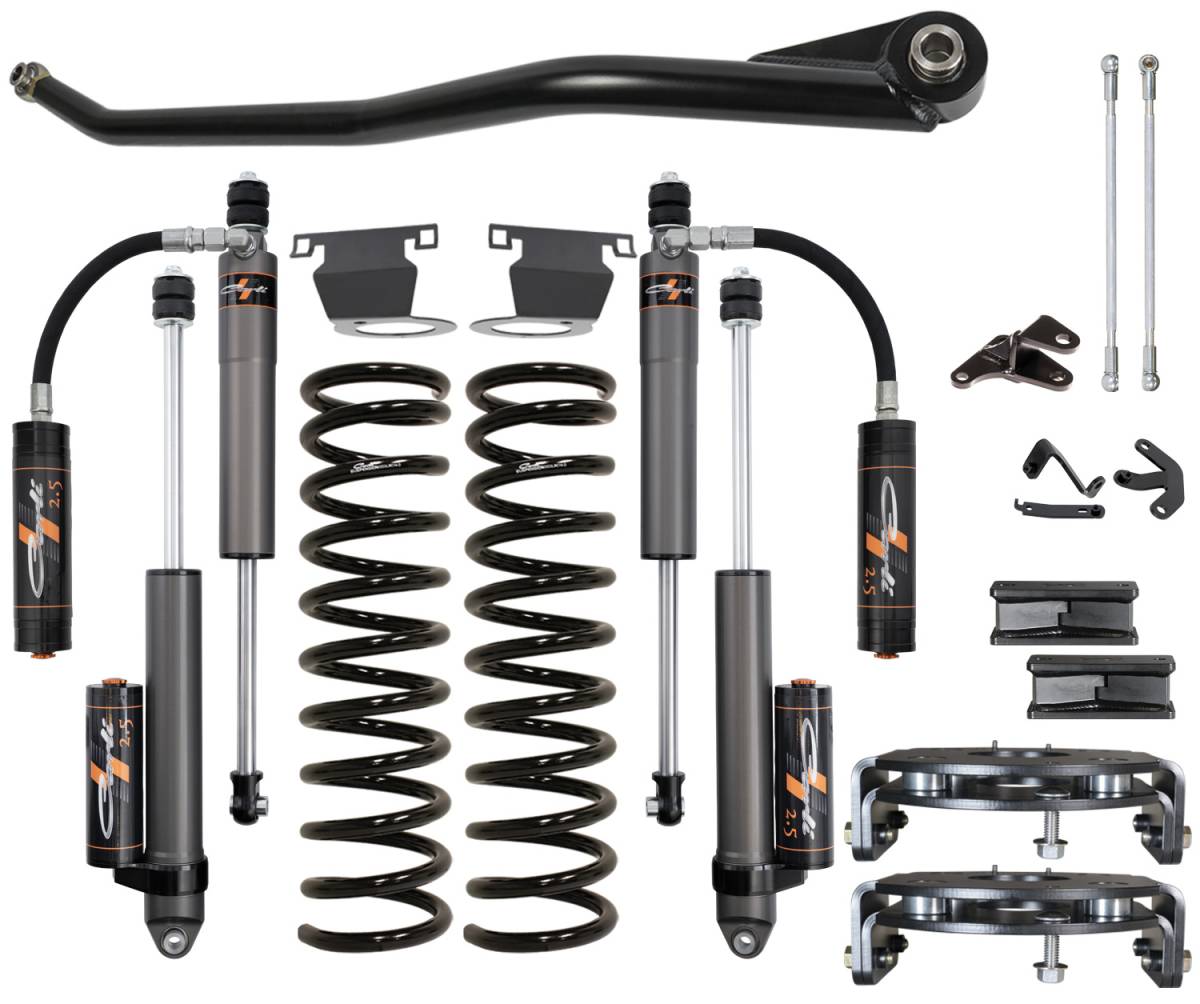

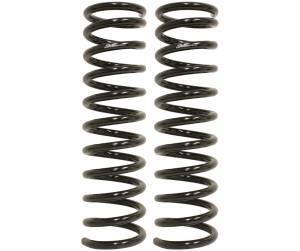

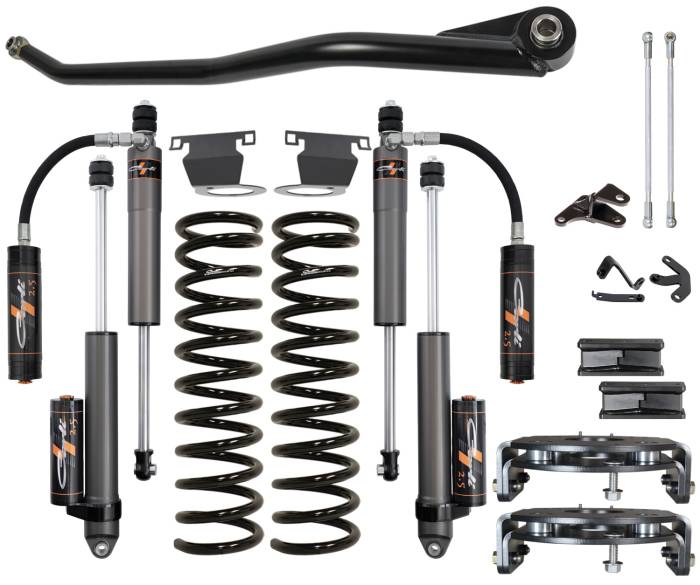

The 2014-2025 Ram 2500 with factory rear air suspension sits nose-down and rides on small factory shocks. This Carli Pathfinder leveling system lifts the front 2.5in on linear-rate coils and raises the rear 1in with an airbag spacer so the truck sits level, then replaces all four shocks with Carli-SPEC 2.5in remote reservoir shocks valved specifically for the air-ride truck. The factory air bags are not modified, so load leveling, the alternate trailer height and payload all work like stock.

Who it's for

Carli's air-ride Ram 2500 line comes in four shock tiers at two heights: Commuter (2.0 IFP), Backcountry (2.0 remote reservoir), Pathfinder (Carli-SPEC 2.5) and Pintop (King 2.5). This is the Pathfinder 2.5in system. Best for: owners who want the plushest daily ride with real off-road ability.

Sits between Backcountry and Pintop. The larger 2.5in shock body soaks up small and medium bumps for a soft, controlled on-road ride, with room for light-to-moderate off-road use.

Key specs (per Carli)

What's included (base kit)

Popular add-ons (sold separately)

• Carli Torsion Sway Bar (CS-DTSB3-1419): optional here; Carli calls it its best ride-quality upgrade for the money.

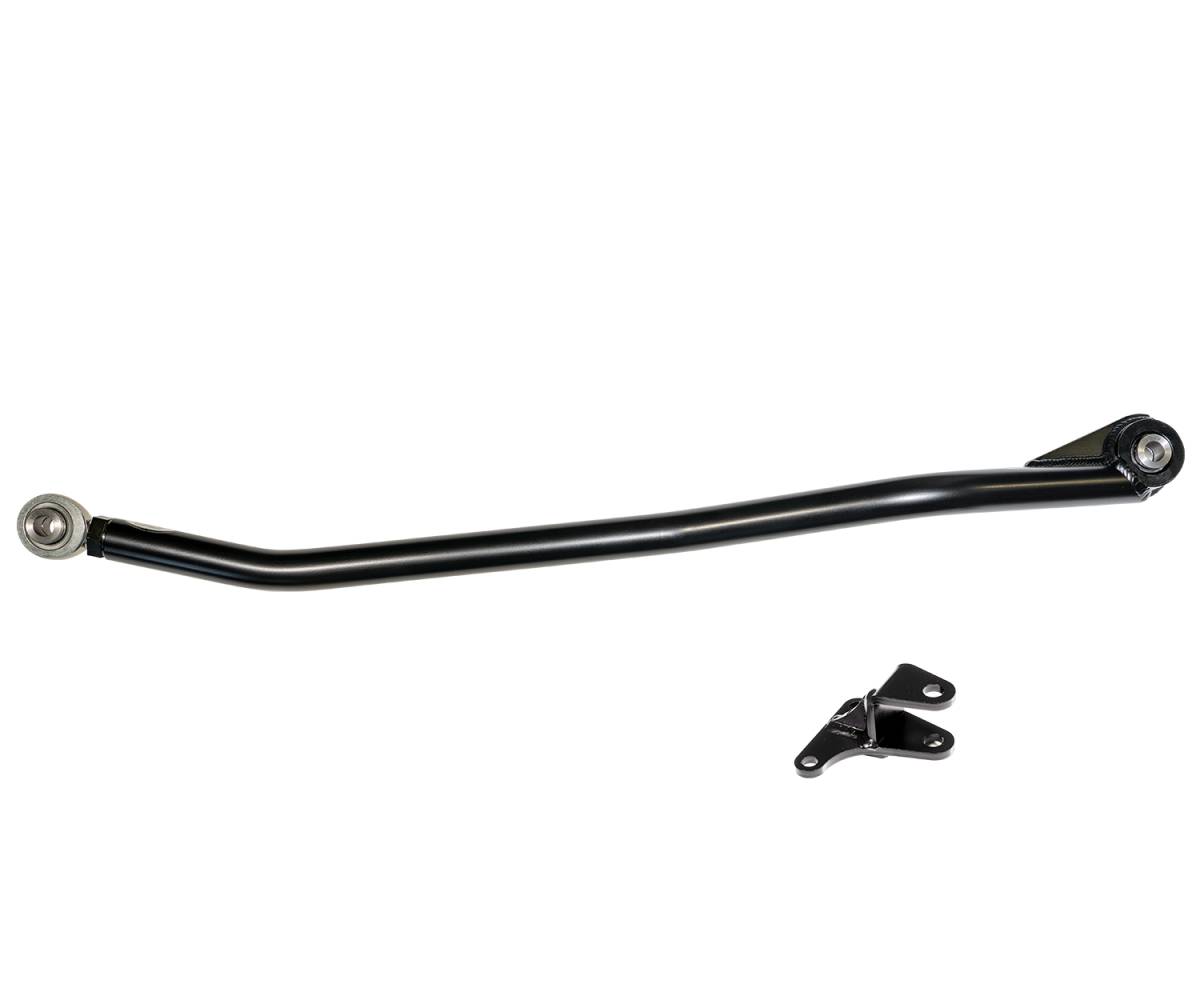

• Carli Extended Rear Track Bar Kit (CS-DATB-14-R-KIT): optional; cuts the rear axle's side-to-side shift. On the leveling systems Carli says it also needs the 1in rear bump stop drop (CS-DRBD-AL) and extended rear sway bar end links (CS-DEL-R-14).
• Carli Low-Mount Steering Stabilizer (CS-DLMSS-14) and Carli High-Mount Steering Stabilizer (CS-DHMSS-19).
• Carli Radius Arm Drop Brackets (CS-DRAD-14), Carli fabricated radius arms, ball joints and front differential guard are also offered.

Fitment notes

• Fits only 2014-2025 Ram 2500 4x4 with the 6.7L Cummins diesel and factory rear air suspension. Carli lists these air-ride systems as diesel only.
• Not for coil-spring rear Ram 2500s, Ram 3500s, Power Wagons or gas trucks; Carli builds separate systems for those.
• Carli says the leveling systems cannot later be upgraded to its 3.25in systems, so pick your lift height up front.
• No radius arm drops are included. Carli suggests using the factory cam bolts to add back a little caster after the lift; a slight coil bow is possible without drops. Carli Radius Arm Drop Brackets (CS-DRAD-14) are available separately.
• Carli recommends a low-mount steering stabilizer for any tire larger than stock.

See the Video tab for Carli's own overview of its systems for the 2014+ Ram 2500 with factory air ride.

Professional install available at Powertech Diesel, Idaho Falls. Call 208-542-7793.
