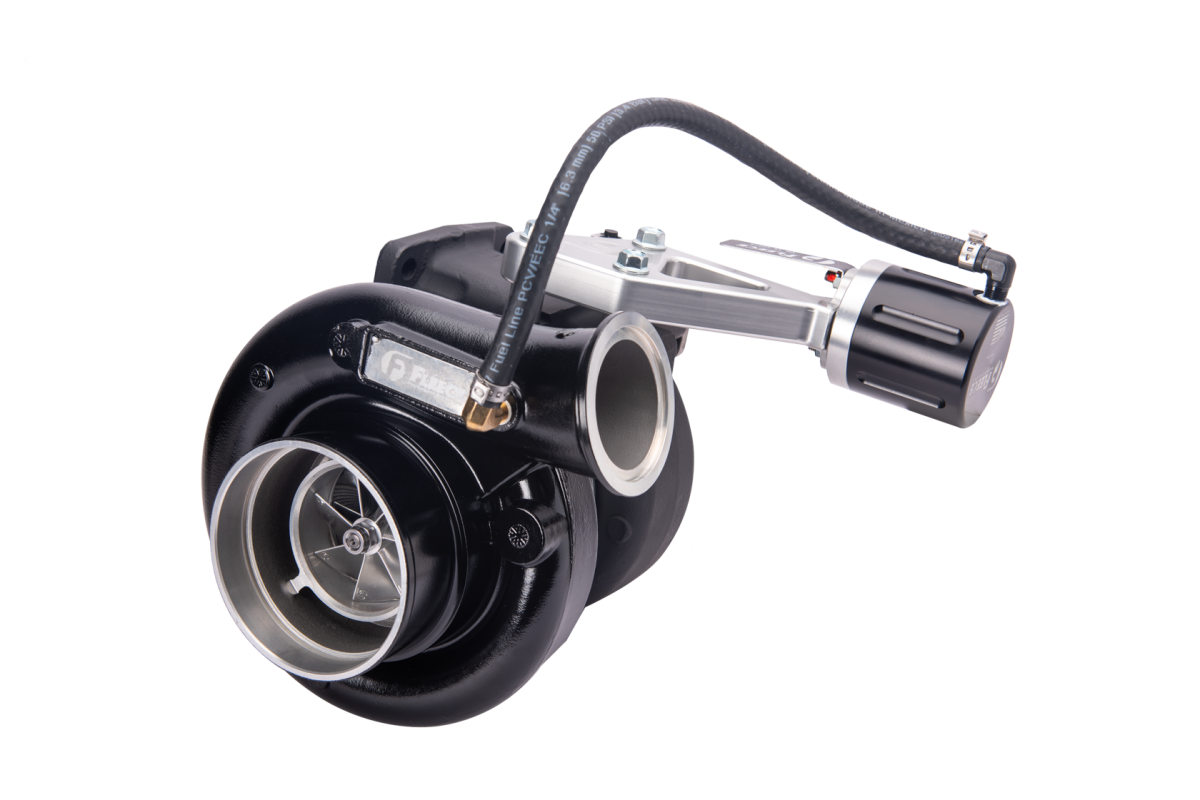

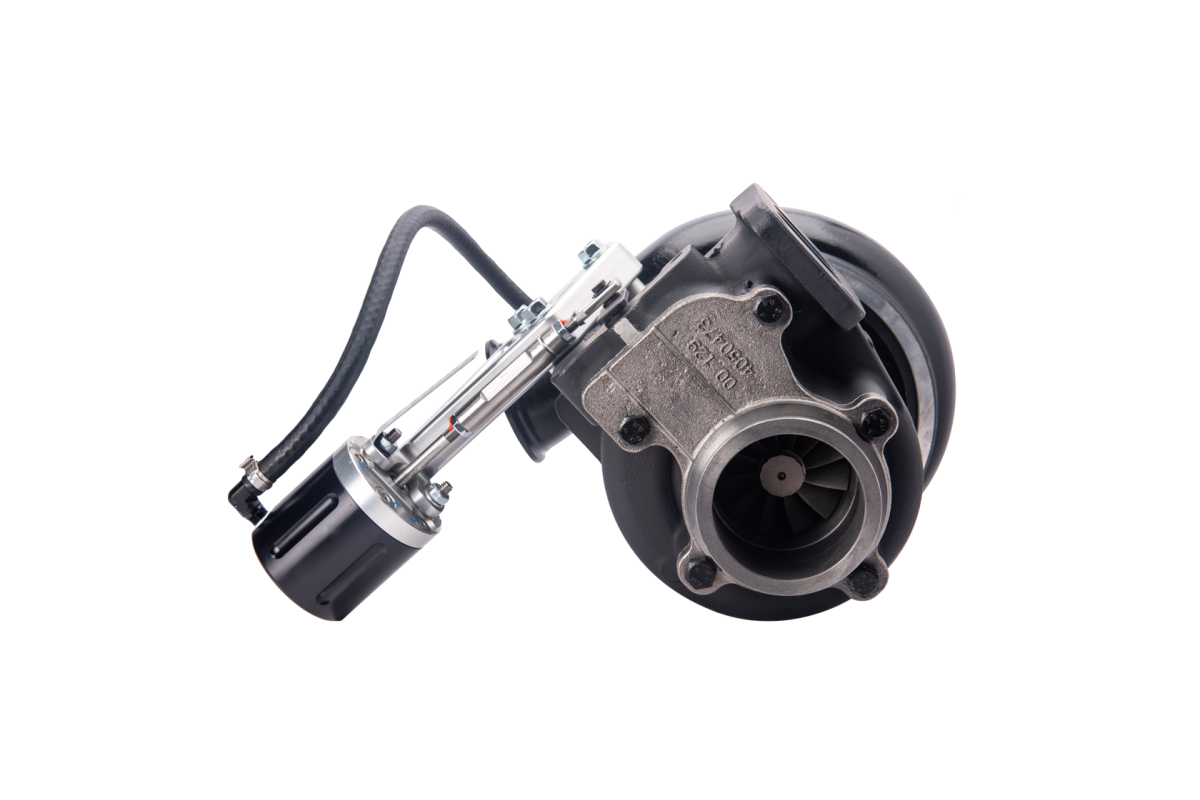

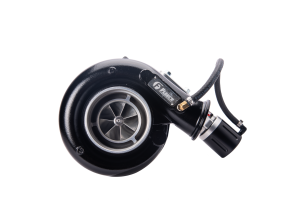

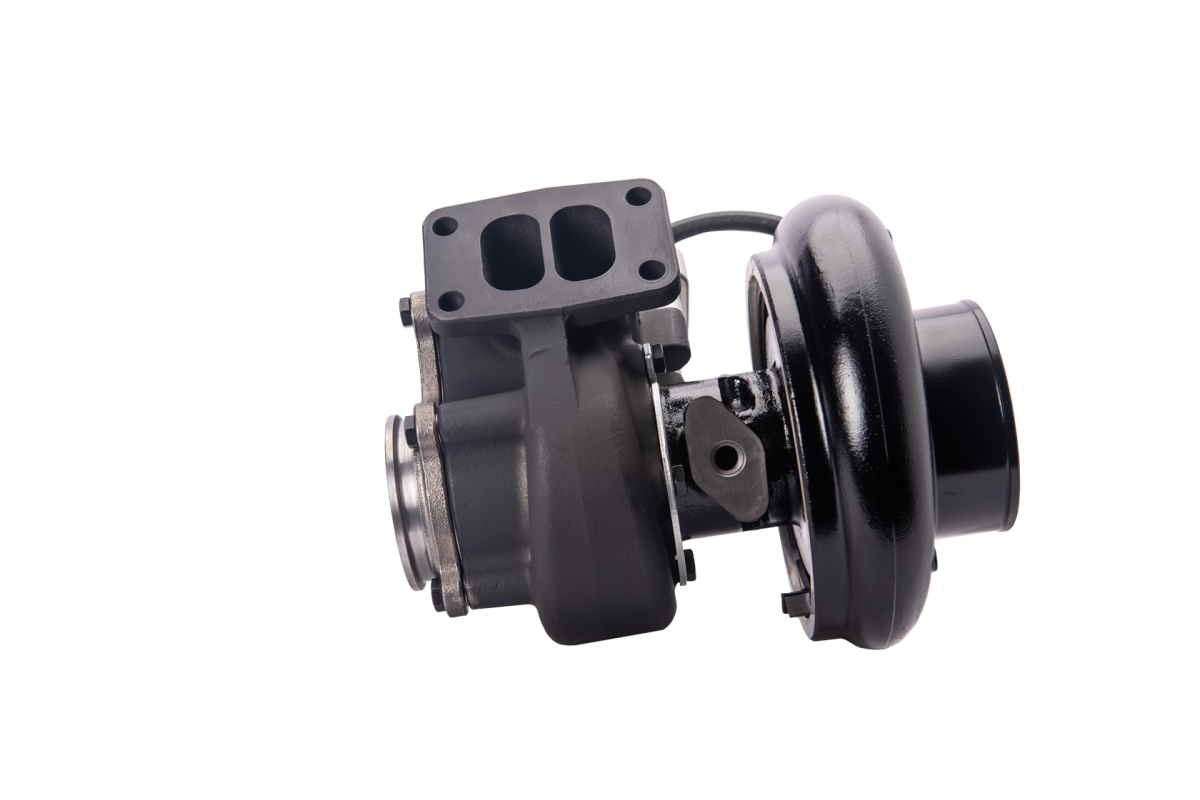

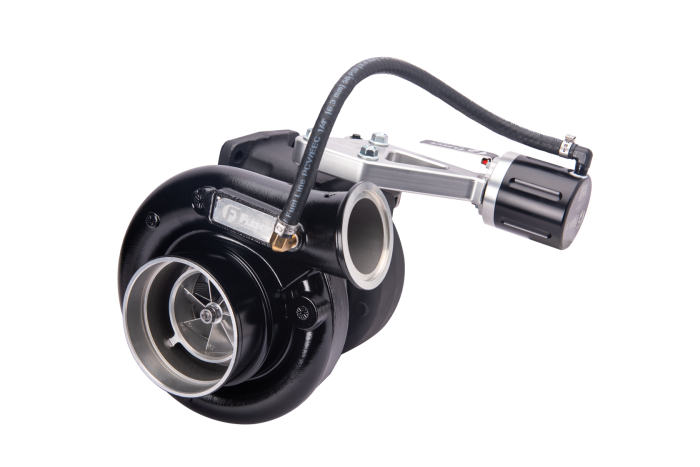

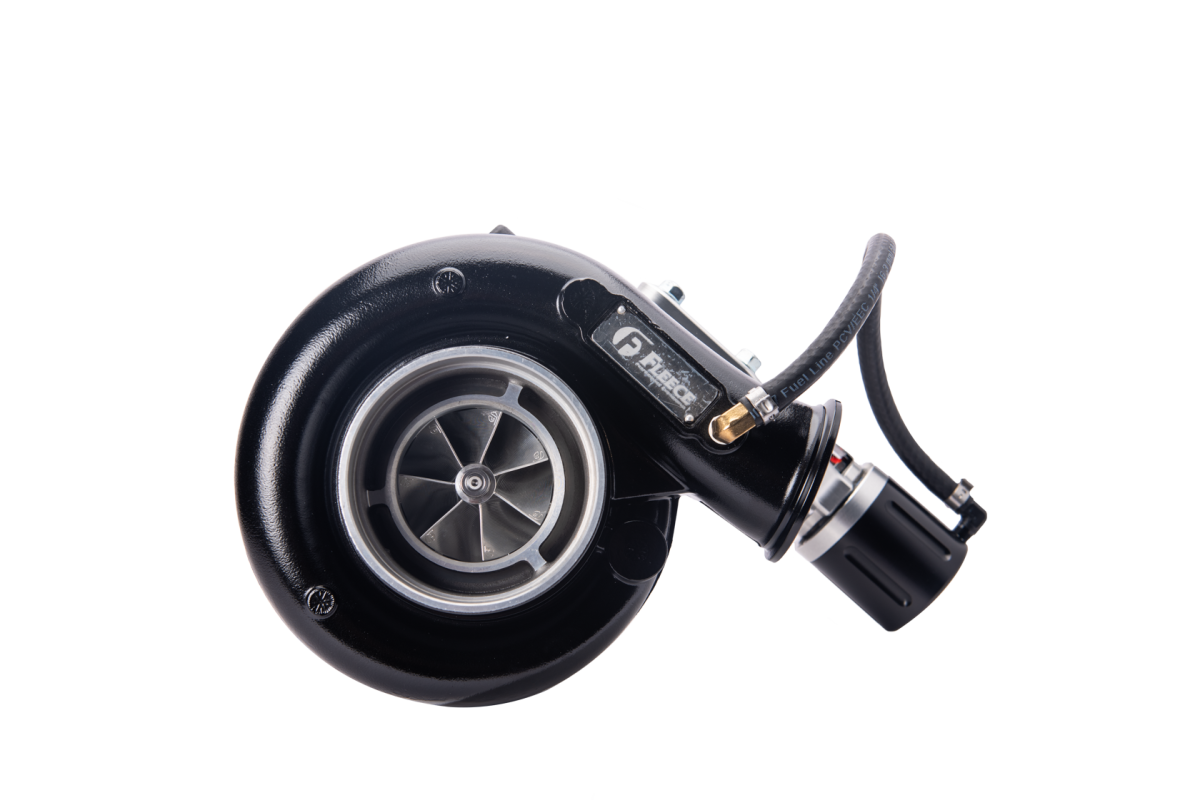

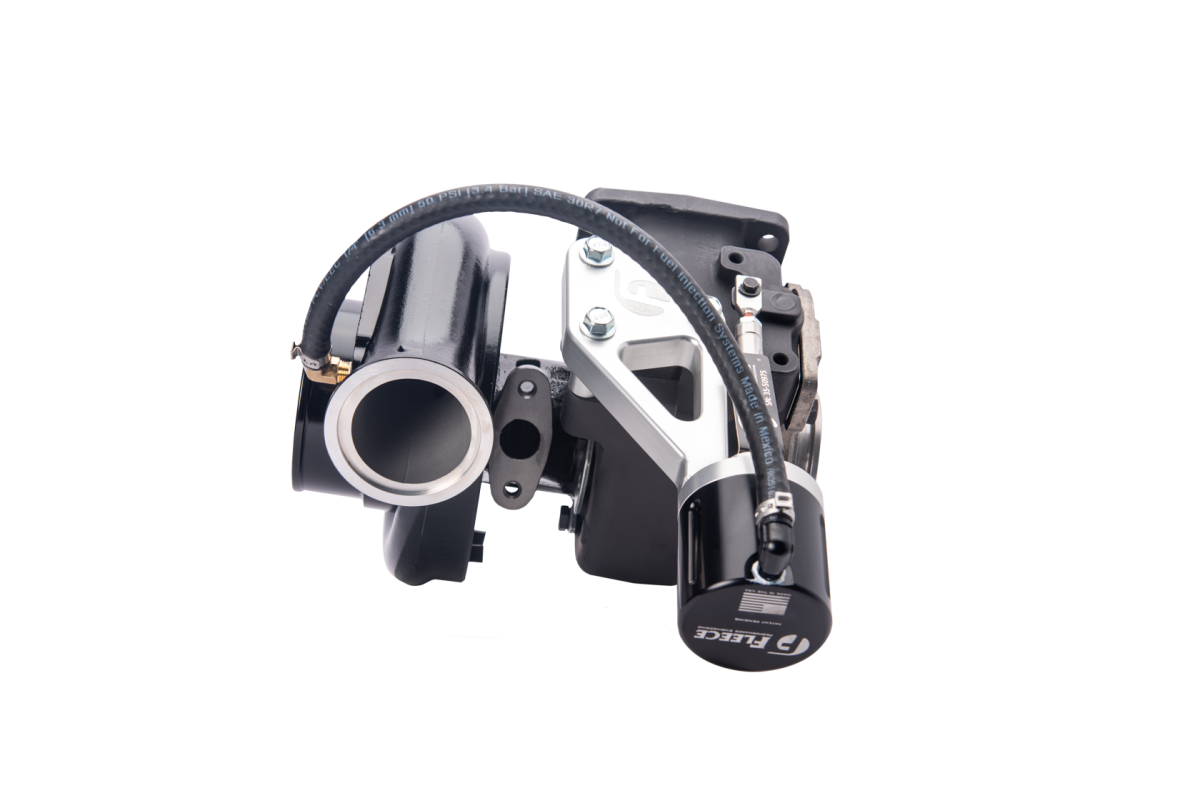

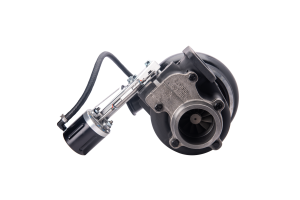

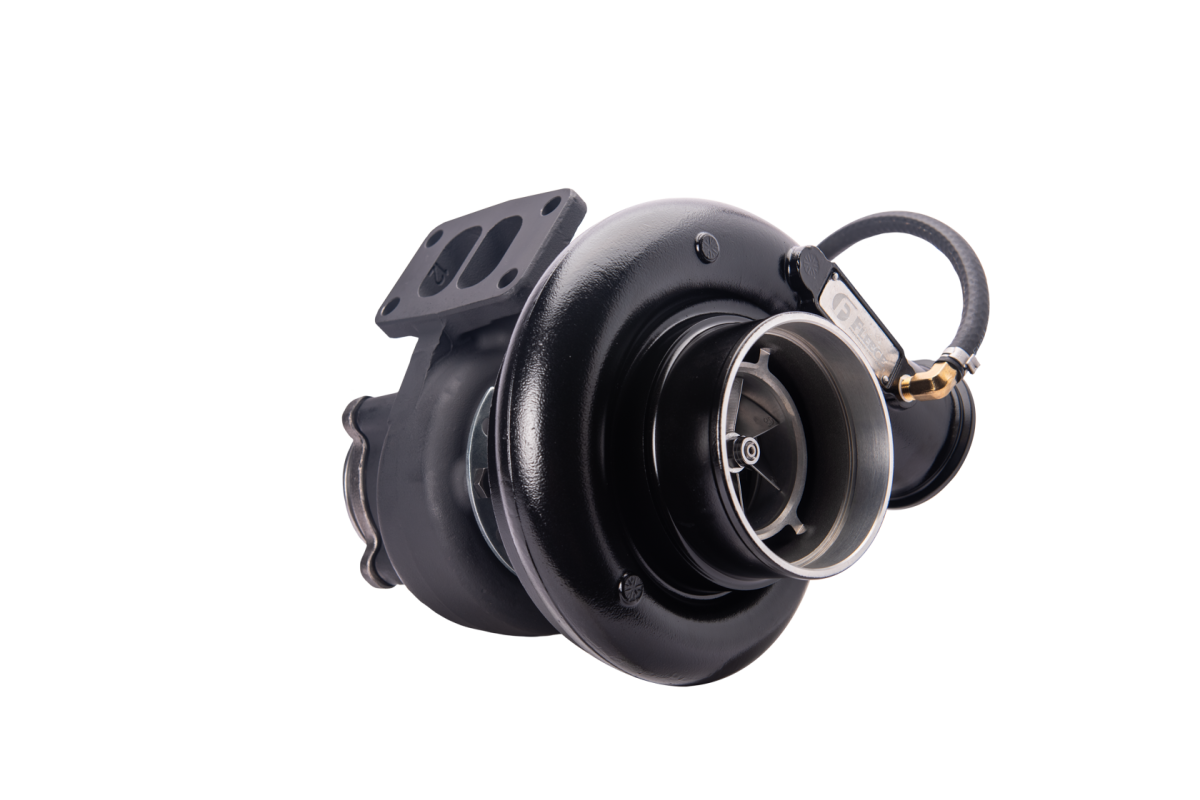

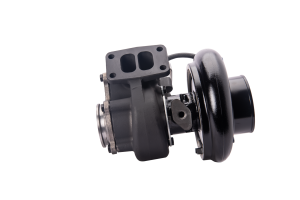

Cheetah HX35 Turbocharger for 1994-2002 5.9L Dodge Cummins Fleece Performance
Turbocharger
Description
More turbo, stock looks
Fleece's Cheetah turbos are drop-in replacements that look stock but are built to make a lot more power. Fleece mills its forged FMW compressor wheels in-house and pairs them with a high-flow turbine wheel, so you get stock-like spool and throttle response with much more top end.
This HX35 bolts on with no adapter kit. Its wastegate comes preset to 40 psi, and Fleece rates it to support up to 650 rwhp with supporting mods.
Who it's for
Owners of 1994-2002 Dodge Ram 2500/3500 5.9L Cummins trucks who are adding fuel and want a turbo to match.
Key specs (per Fleece)
| Engine | 5.9L Cummins 12-valve and 24-valve VP44, 1994-2002 |
|---|---|
| Turbo | Holset HX35-style Cheetah |
| Compressor wheel | 63 mm FMW (forged, milled) |
| Turbine wheel | Inconel |
| Wastegate | Preset to 40 psi |
| Supports (per Fleece) | Up to 650 rwhp |
| Warranty | 1-year limited parts (Fleece) |
| Shipping weight | 40 lb |
What's included
- Cheetah HX35 turbocharger
Fitment notes
- Fits 1994-1998 Dodge Ram 2500/3500 with the 5.9L 12-valve Cummins and 1998.5-2002 trucks with the 5.9L 24-valve VP44 Cummins (per Fleece).
- Fleece recommends pairing it with more fuel. On 1998.5-2002 trucks, higher-output injectors and a lift pump are needed to get the most from it.
- California: Fleece lists the CARB EO as pending; not for sale for use on California-licensed vehicles (per Fleece).
Professional install available at Powertech Diesel, Idaho Falls — call 208-542-7793.
Video
Details
- FPE-HX35-63-FMW
- FPE-HX35-63-FMW
- Fleece Performance
- Available
- All prices and availability are subject to change without prior notice.
- New
Shipping Information
- Item Requires Shipping
- 25.0 lbs.
- W12.0000” x H12.0000” x L12.0000”
- Free Ground Shipping on orders over $150.00 (excludes HI and AK)
