2003-2007 5.9L Cummins 3.5" High Flow Intake Horn & Intercooler Pipe Kit

WCF100528
Wehrli 3.5 in. intake horn plus matching driver-side charge pipe for 2003-2007 5.9L Cummins: 60% more flow than stock, bolt-on.
Pricing: $590.00

Customize Your Item

- Model Year -
 * required
- Powder Coating -
 * required
- Tag (Logo) Finish (PCUCTAG) -
 * required
- Grid Heater -
 * required
Qty:
Free Ground Shipping on orders over $150.00 (excludes HI and AK)

Description

Open up the 5.9L cold side

The factory 5.9L setup uses a failure-prone 3 in. plastic intercooler pipe and a cast intake horn that necks down to less than 1.5 in. wide. Wehrli replaces both with a 3.5 in. 14 ga aluminum pipe and a fully mandrel-bent 3.5 in. elbow, for 60% more flow than stock.

A CNC-machined aluminum flange is welded to the elbow; it matches Wehrli's billet intake spacer for the best flow into the head. It also works with the factory grid heater or other high-flow intake plates, though the inside match will not be as exact.

The flange has two 1/8 in. pipe ports for boost reference or injection and an 8 mm threaded port for the factory harness clamp, and the horn has a threaded bung to secure the dipstick tube.

Who it's for

5.9L Cummins owners who want better cold side flow without the plastic factory pipe.

Key specs (per Wehrli)

Engine / years5.9L Cummins, 2003-2007
Pipe / horn3.5 in., 14 ga aluminum
Flow60% more than stock (Wehrli figure)
Accessory portsTwo 1/8 in. NPT
TuningNot required
Shipping weight / box10 lb · 12 × 10 × 32 in

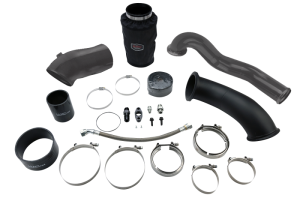

What's included

  • 3.5 in. intake horn with CNC-machined flange
  • 3.5 in. driver side intercooler pipe
  • 5-ply silicone boots and stainless T-bolt clamps
  • Intake gasket and new hardware; powder-coated finish

Fitment notes

  • Fits 2003-2007 Dodge/Ram 2500 and 3500 with the 5.9L Cummins.
  • Keeps the factory dipstick location and wire harness routing.
  • On 2003-2004 trucks the plastic throttle-body cover has to be trimmed to clear the larger horn.
  • California: Wehrli does not ship this part to California.

Professional install available at Powertech Diesel, Idaho Falls — call 208-542-7793.
