Pintop Leveling System - Base - 2.5/3.5in Lift - 2005-07 Ford F250/350 - Diesel

Overview

The Pintop remains Carli’s jack-of-all-trades Super Duty system: blueprinted King 2.5″ remote-reservoir shocks with 17-4 stainless shafts, lighter-rate leveling coils, adjustable track bar, caster shims, and extended brake lines. Expect a leveled stance with more front travel and a ride that rounds sharp edges on-road while staying composed in light-to-medium dirt use.

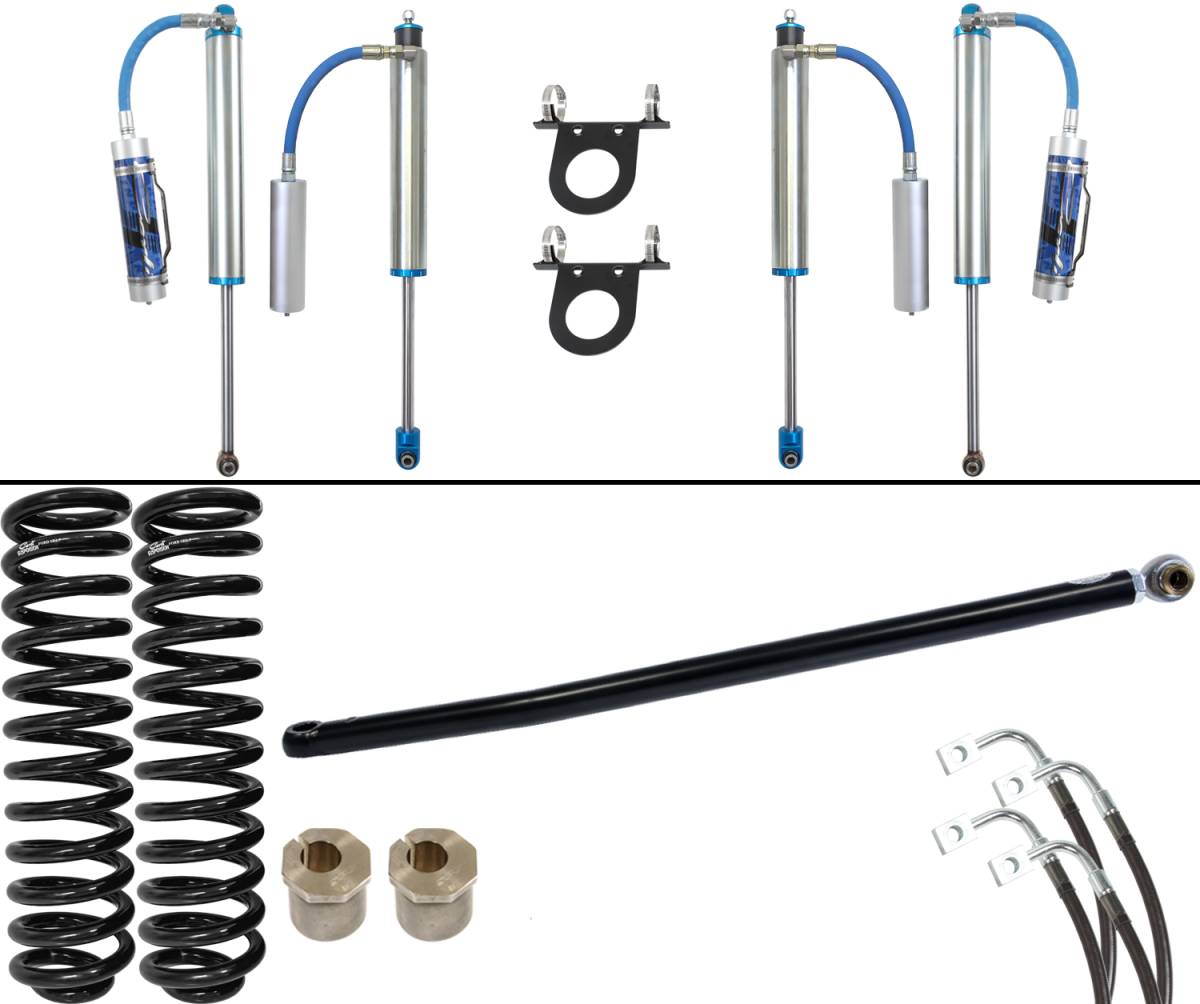

Specs / Components

• CS-FLC-05 front leveling coils
• CS-FPT25SPKG-LVL-05 Carli-tuned King 2.5″ RR shocks with stainless shafts & reservoir mounts
• CS-FORDBBL-05 brake lines; CS-FCASTERSHIM-2.5; CS-FPRB-05 track bar
• Front lift ~2.5″; rear lift depends on leaf option (stock / PAP / full progressive)—select leaf option separately per Carli configurator
• Approx. travel (config page): 9″ front / 13″ rear; tire guidance often cites ~35″ x 12.5″

Why Carli

• Carli-blueprinted King 2.5″ remote-reservoir shocks with 17-4 stainless shafts
• Jack-of-all-trades ride: strong on-road manners plus controlled dirt performance
• 55% more piston area than typical 2.0″ shocks for heat capacity and control

Professional install available at Powertech Diesel, Idaho Falls — call 208-542-7793. Sold at MAP; no Carli discounts.
