Ram Heavy Duty Sway Bar Links 6 Inch Lift 98.5-13 Ram 1500/2500/3500 4x4 Synergy MFG

Sway bar links sized for your lift

The sway bar links tie the bar to the axle and keep body roll in check. After a lift the stock links are too short and their rubber pancake bushings wear out; these Synergy links are cut for a 6 in. lift and are far stronger than stock.

A stem top adapter replaces the weak factory pancake bushing at the bar, and an OEM style bushing plus a sealed tie rod end make a direct, solid connection to the axle. The links are machined from solid 1020 cold rolled steel, clear zinc plated and made in the USA.

Who it's for

1998.5-2013 Ram 2500 / 3500 4x4 owners running about 6 in. of lift.

Key specs (per Synergy)

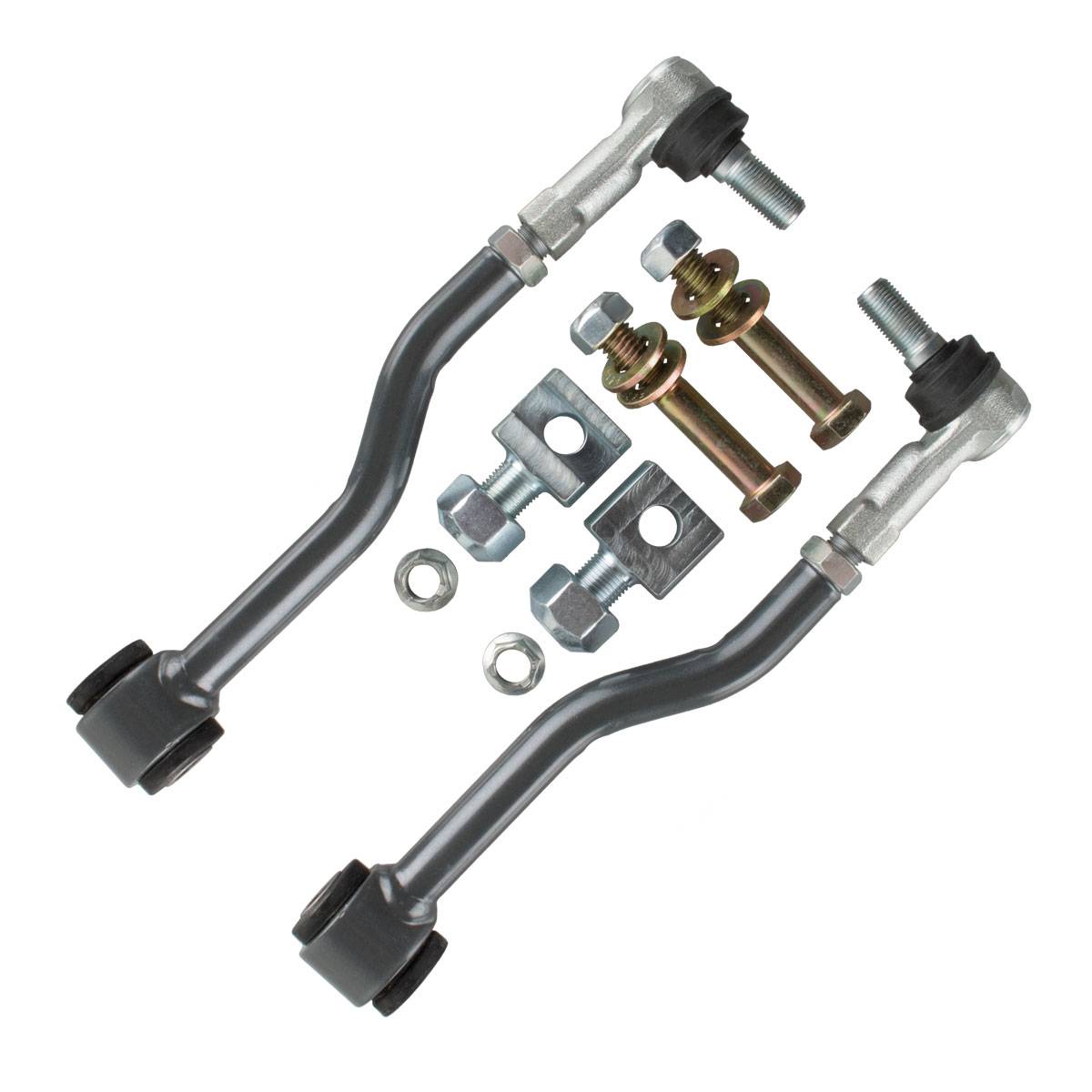

What's included

• (2) sway bar links
• (2) sealed tie rod end link ends
• (2) 851501 stem top adapters
• Jam nuts, tapered nuts and Grade 8 bolts, nuts and washers

Fitment notes

• Fits Ram 2500 4x4 from mid-1998 through 2013 and Ram 3500 4x4 from mid-1998 through 2012 (also the 06-08 Mega Cab 1500 4x4).
• Synergy notes some early trucks need light drilling at the axle mount. On 1998.5-2002 trucks the link only clears the steering once a Synergy HD steering kit is fitted (8525-02 on 2000-02 trucks, 8525-03 on 1994-99 trucks).
• On 2003-2009 trucks with the factory Y-link steering, the passenger side may be tight.
• Ram built the 2013 3500 two ways; if your truck has radius arms up front, use the Synergy 2014+ parts instead.

Professional install available at Powertech Diesel, Idaho Falls — call 208-542-7793.
