FASS 05-18 / 21-24 Dodge Cummins 2500/3500 100gph No Drop Titanium Plus Fuel System - NDTSPD07100G

FASS No-Drop Titanium Signature Series PLUS 100 GPH fuel system

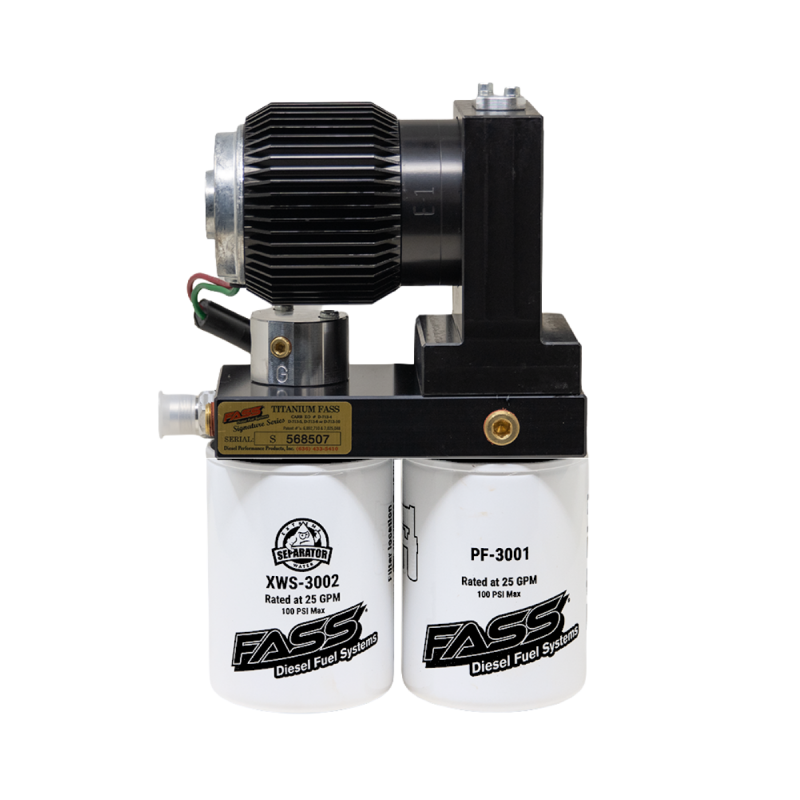

The FASS No-Drop Titanium Signature Series PLUS is a frame-mounted lift pump with built-in filtration, sized here at 100 GPH for 2005-2018 and 2021-2024 Ram/Dodge 5.9L and 6.7L Cummins. It feeds the engine's injection pump with fuel that has already been filtered, dewatered and stripped of air.

Per FASS, the system filters to 2 microns absolute with microglass media, removes more than 99% of water (FASS cites third-party testing), and pulls entrained air and vapor out of the fuel with FASS’s patented separation process.

Fuel the engine doesn’t use goes back to the tank through the filters, so the whole tank keeps getting cleaned as you drive. FASS calls this Mass Flow Return.

This is the No-Drop version. It comes with FASS’s Single Bolt Fuel Sump in 6061-T6 billet aluminum: drill one hole in the bottom of the tank and bolt the sump in. The sump has both the suction and return ports, so you never have to drop the tank.

The PLUS package upgrades the plumbing. The filter base gets O-ring boss (ORB) ports and the rest of the lines use AN-style fittings, all in black anodized finish.

FASS recommends the 100 GPH size for stock up to about 600 hp. FASS rates its flow on diesel at operating pressure.

Who it's for

Cummins owners, stock or modified, who want cleaner fuel to protect the injectors and injection pump, with water and air pulled out before they reach the engine.

Key specs (per FASS)

What's included

• FASS No-Drop Titanium Signature Series PLUS pump and filter assembly (NDTSPD07100G)
• Steel mounting brackets
• Single Bolt Fuel Sump Kit
• FASS installation manual

Fitment notes

• Listed by FASS for 2005-2018 and 2021-2024 Ram/Dodge 5.9L and 6.7L Cummins.
• FASS application list includes: Dodge Ram 2500 (2005-2010); Dodge Ram 3500 (2005-2010); Ram 2500 (2010-2022); Ram 3500 (2011-2022); RAM 2500 (2023-2024); RAM 3500 (2023-2024).
• FASS electric fuel heater kits are optional and sold separately.
• No-Drop install requires drilling one hole in the bottom of the fuel tank for the sump.
• Pick the flow size that matches your power level; check year and engine against the FASS listing before ordering.
