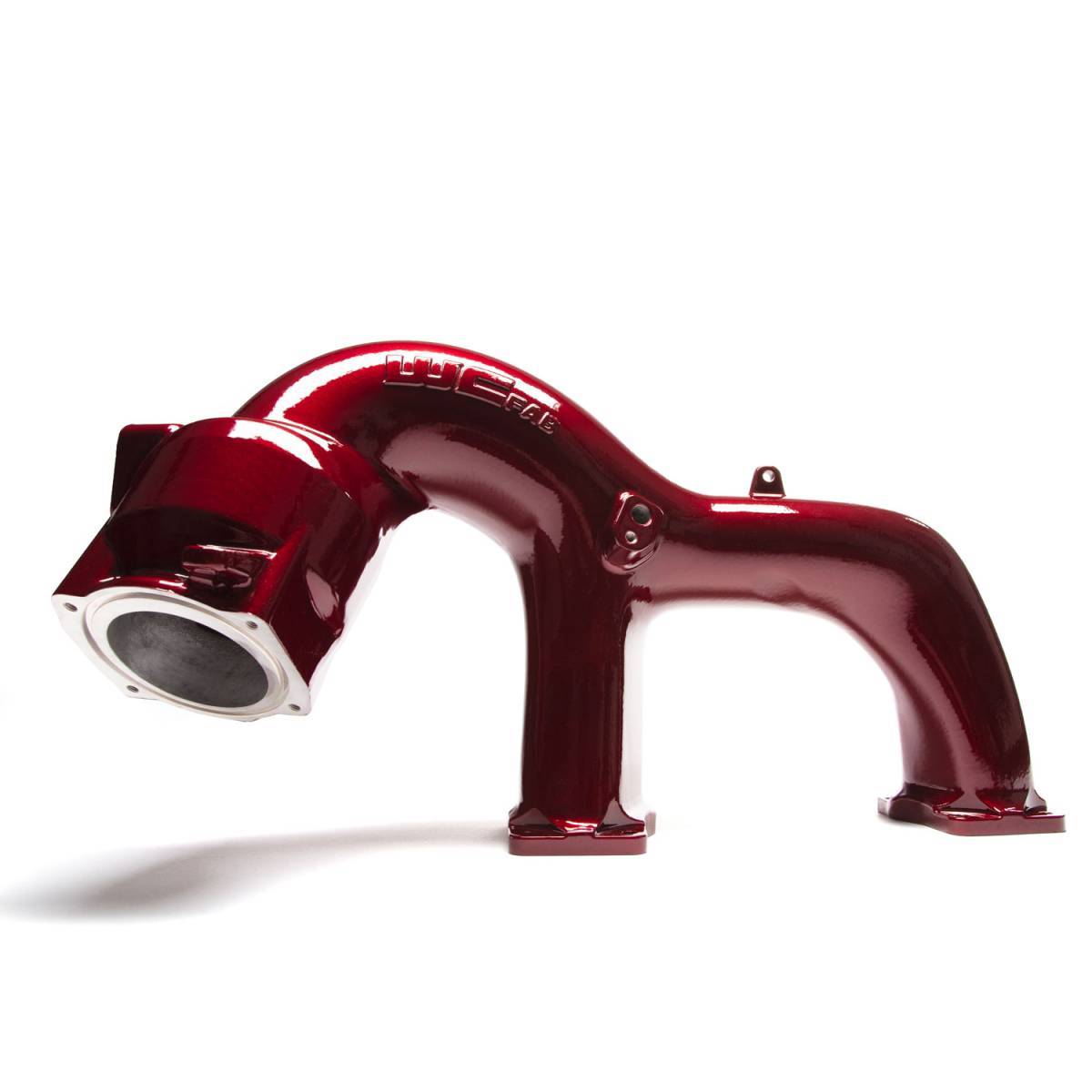

2017-2026 L5P Duramax High Flow Y-Bridge Kit

Why replace the factory Y-bridge

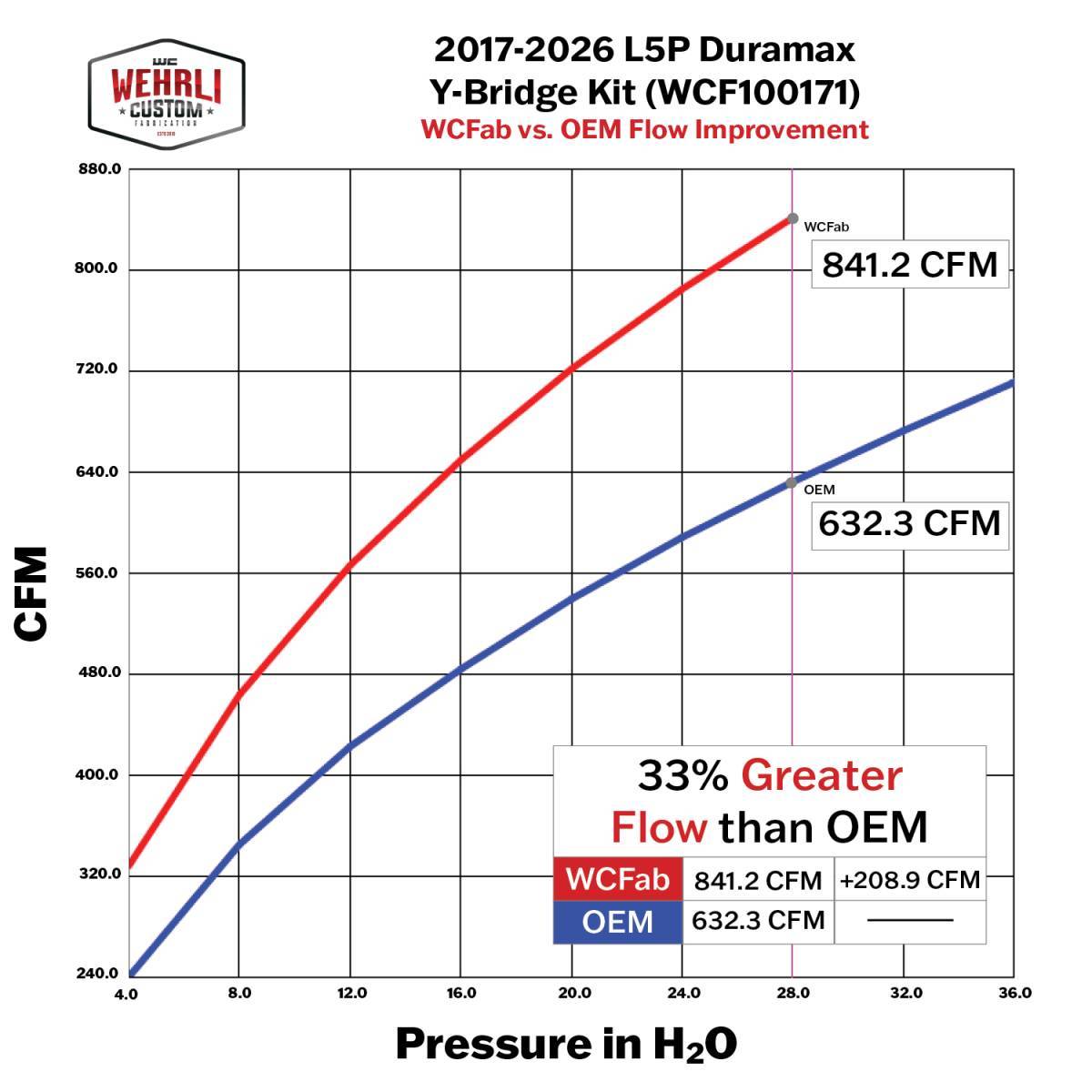

The stock L5P Y-bridge is a choke point in the intake tract, and it feeds roughly 70% of the charge air to the driver's side head and only 30% to the passenger side. WCFab's High Flow Y-Bridge opens up the inlet, port-matches it to the throttle valve and balances airflow between both banks. Wehrli rates it at 33% more flow than the OEM part.

On a stock truck you can expect sharper throttle response, quicker turbo spool and lower EGTs when towing. On a built truck with tuning and a bigger turbo, it removes one of the restrictions that keeps the factory intake from supporting higher horsepower.

Features

• About 33% more airflow than the factory Y-bridge (manufacturer rating)
• Even air distribution to both cylinder heads

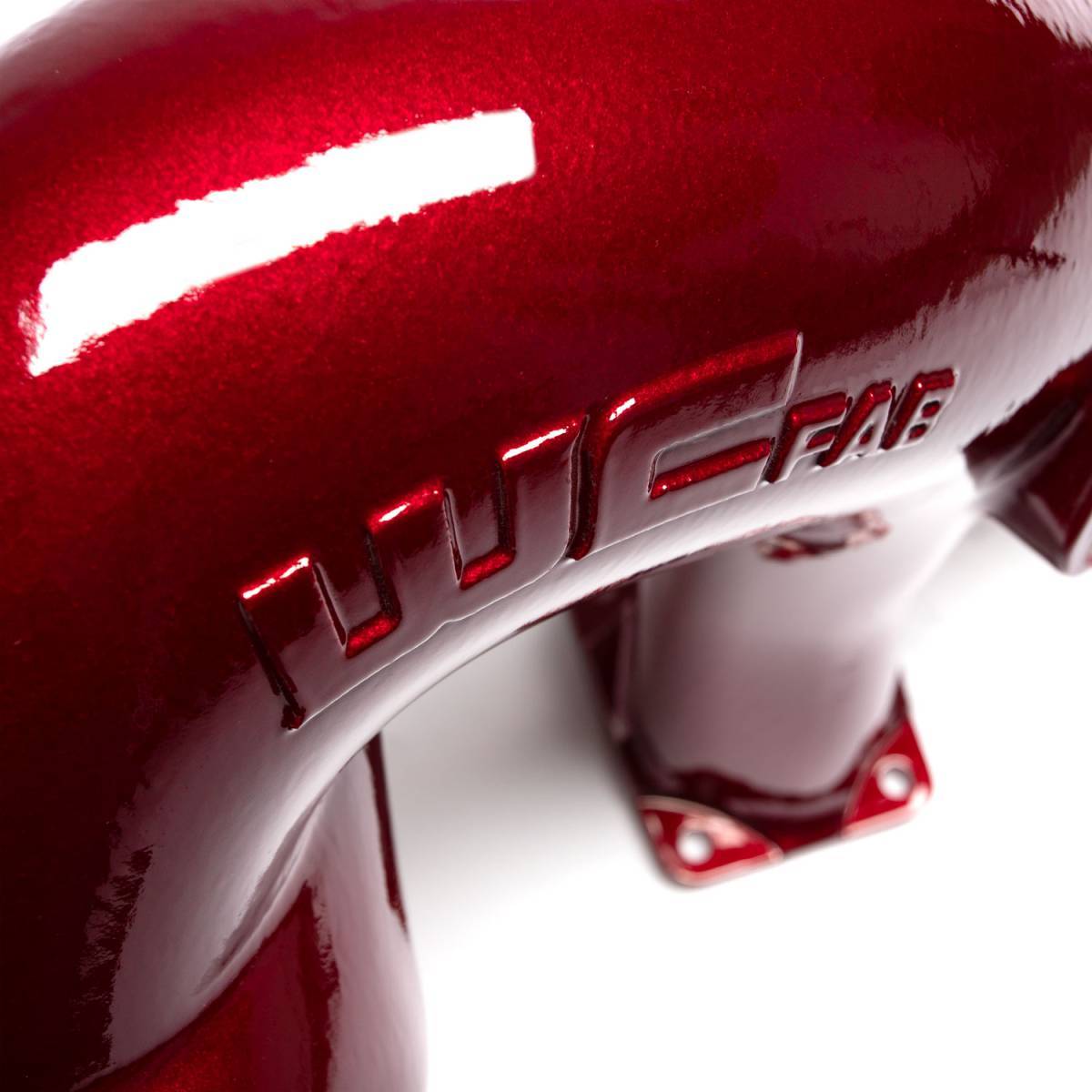

• Cast in the USA from 356 aluminum and CNC machined by WCFab
• Works with 2017-2022 single MAP sensor and 2023-2026 dual MAP sensor engines

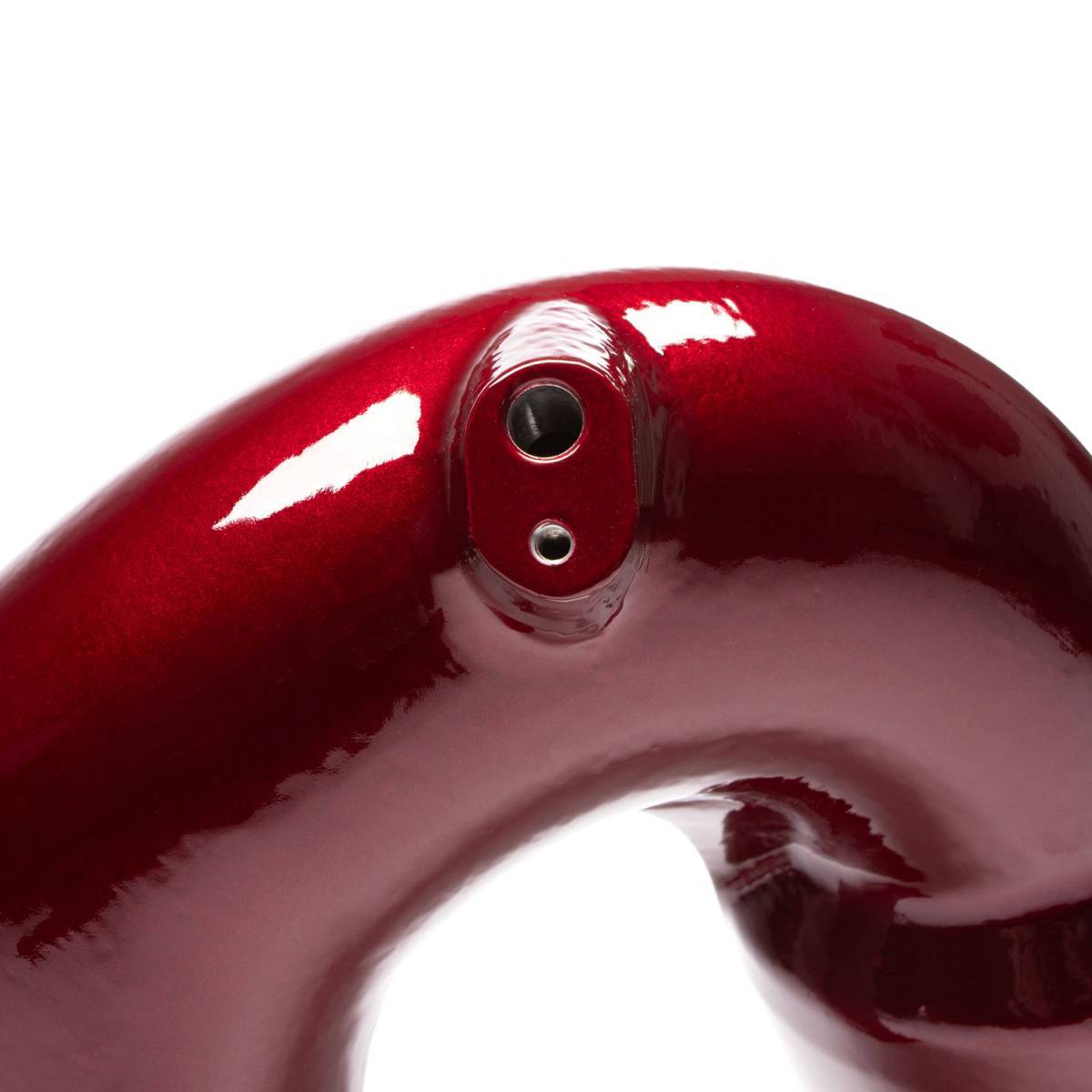

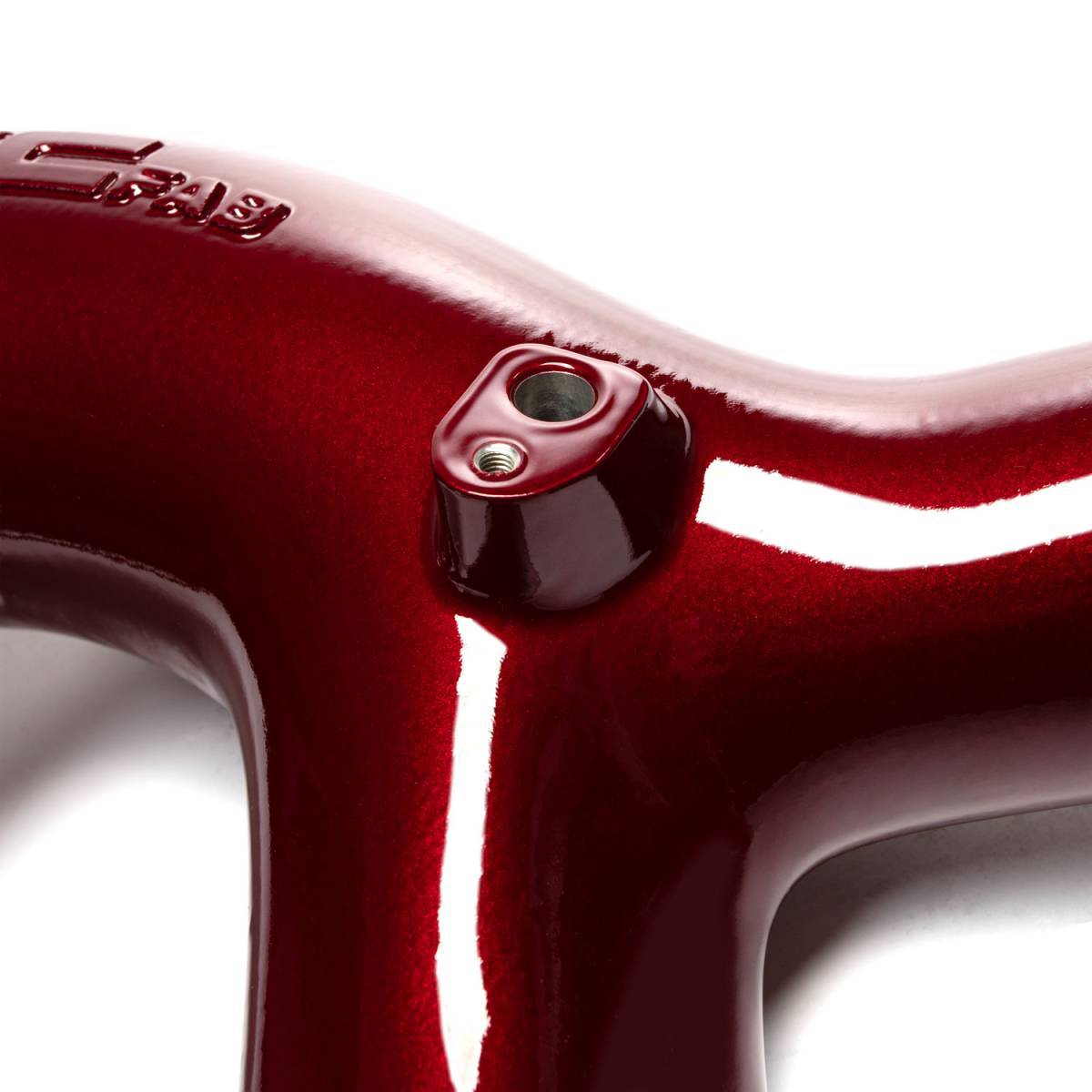

• Built-in MAP sensor bosses keep the sensor(s) out of the airflow path, cutting oil and soot buildup, with no spacers needed

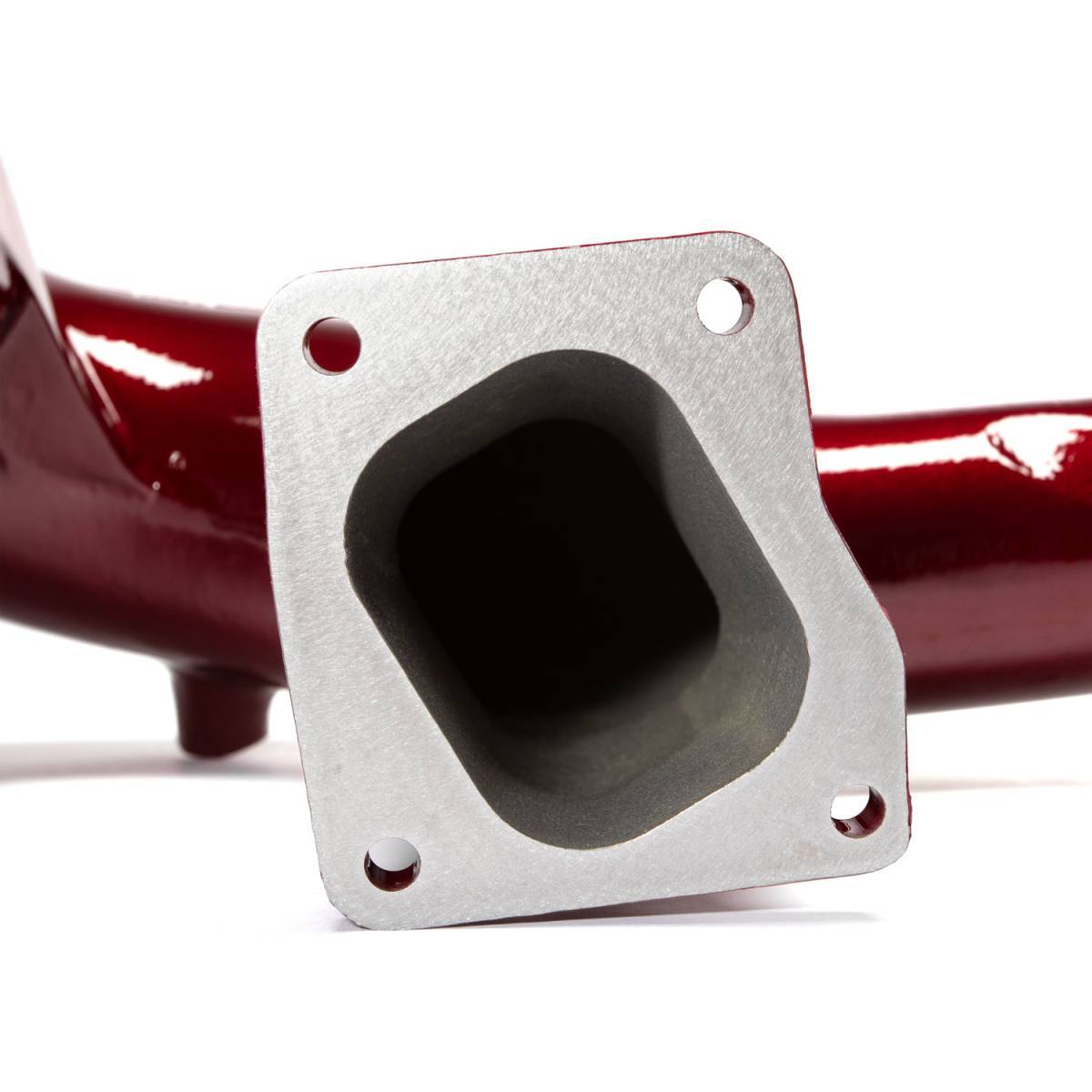

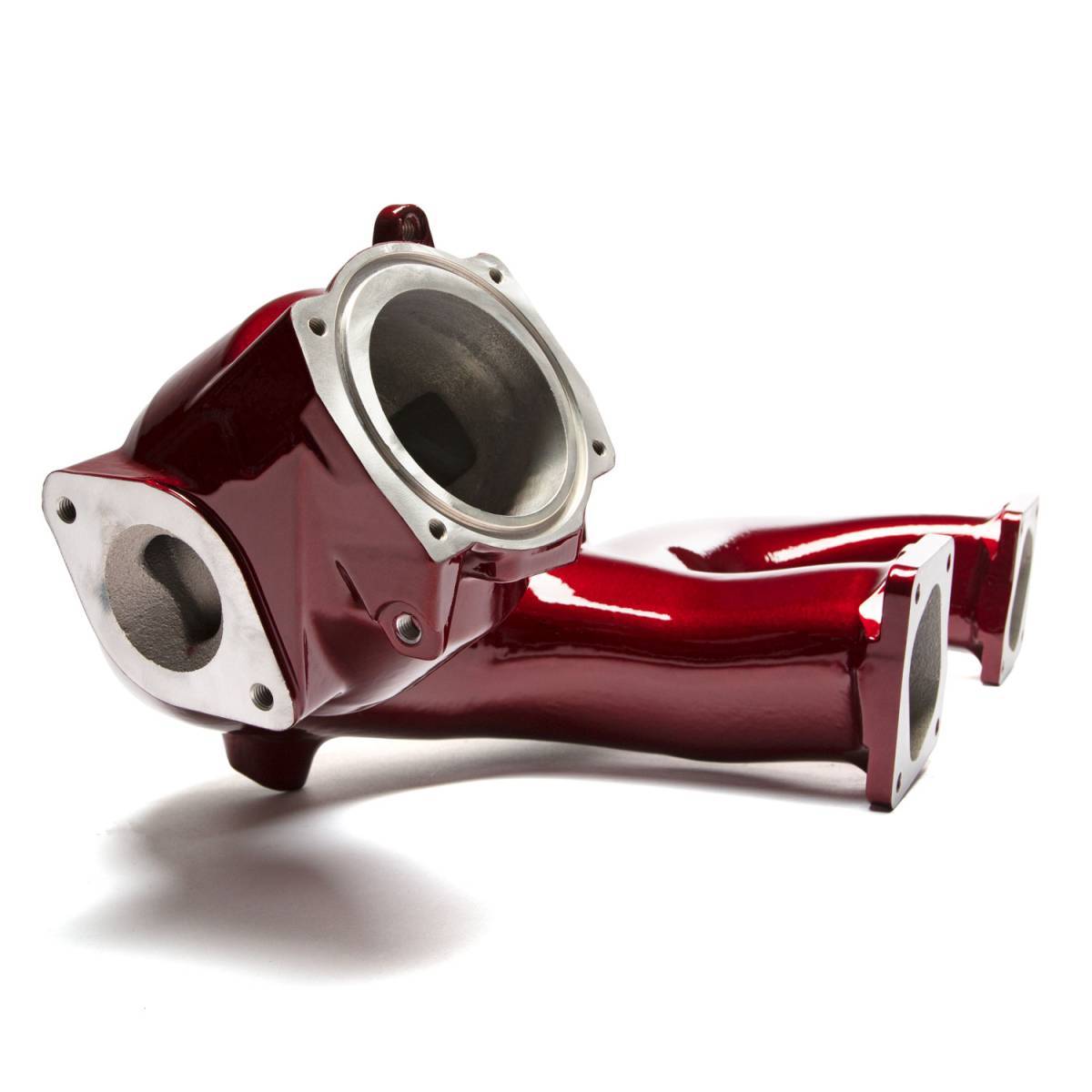

• Enlarged, port-matched inlet to the throttle valve
• Emissions-compatible bolt-on; no tuning required on stock trucks
• Works with OEM and aftermarket intakes and drop-in turbo upgrades

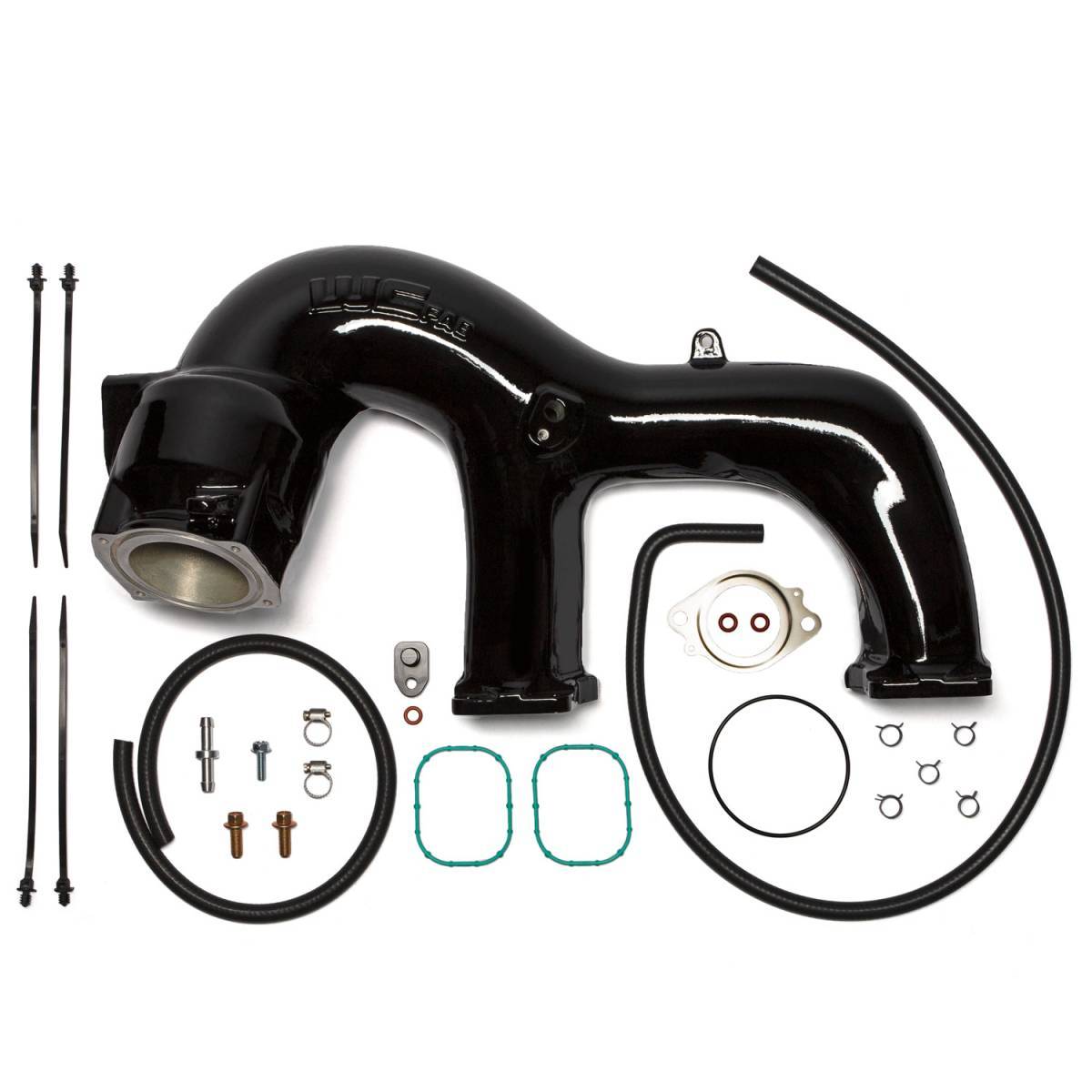

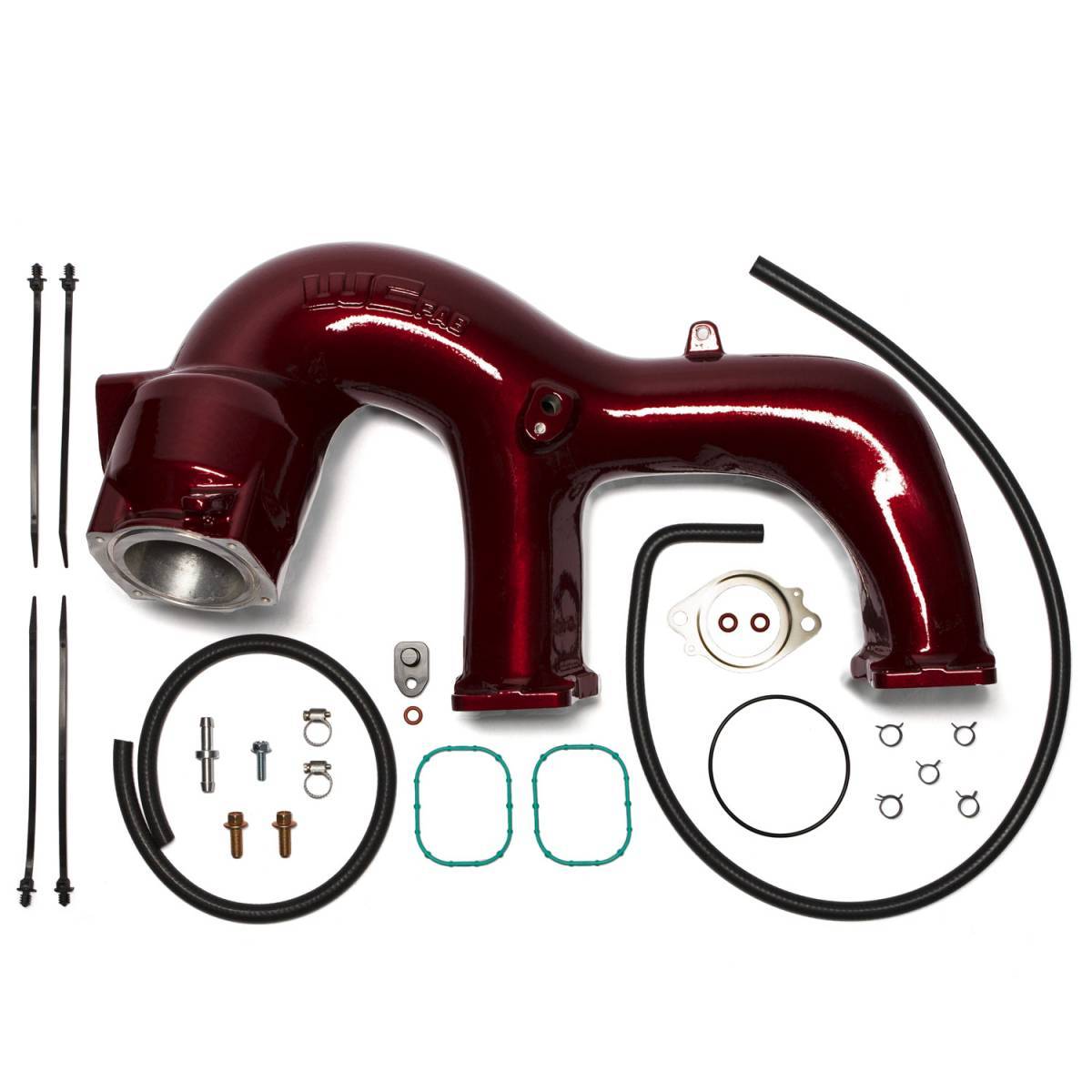

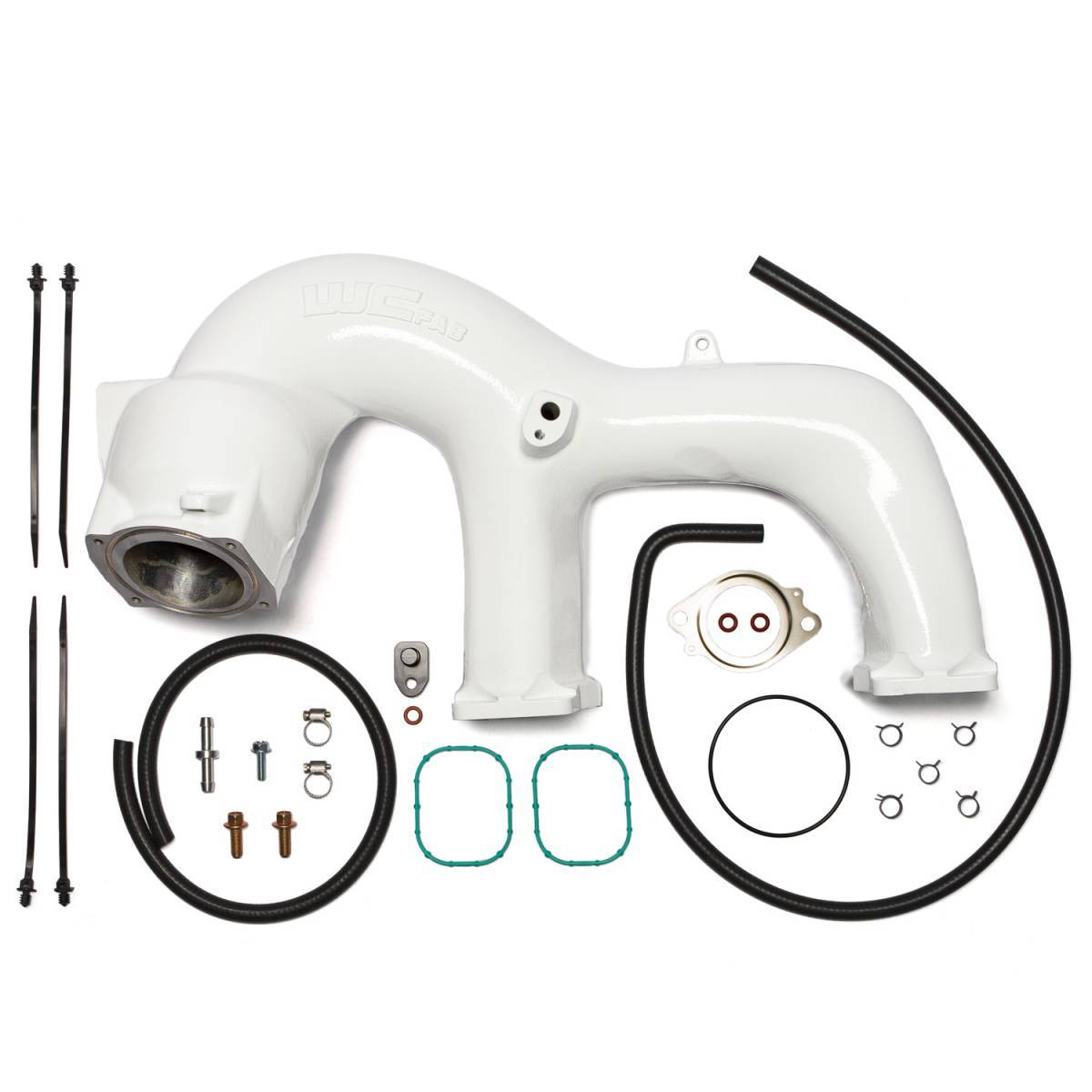

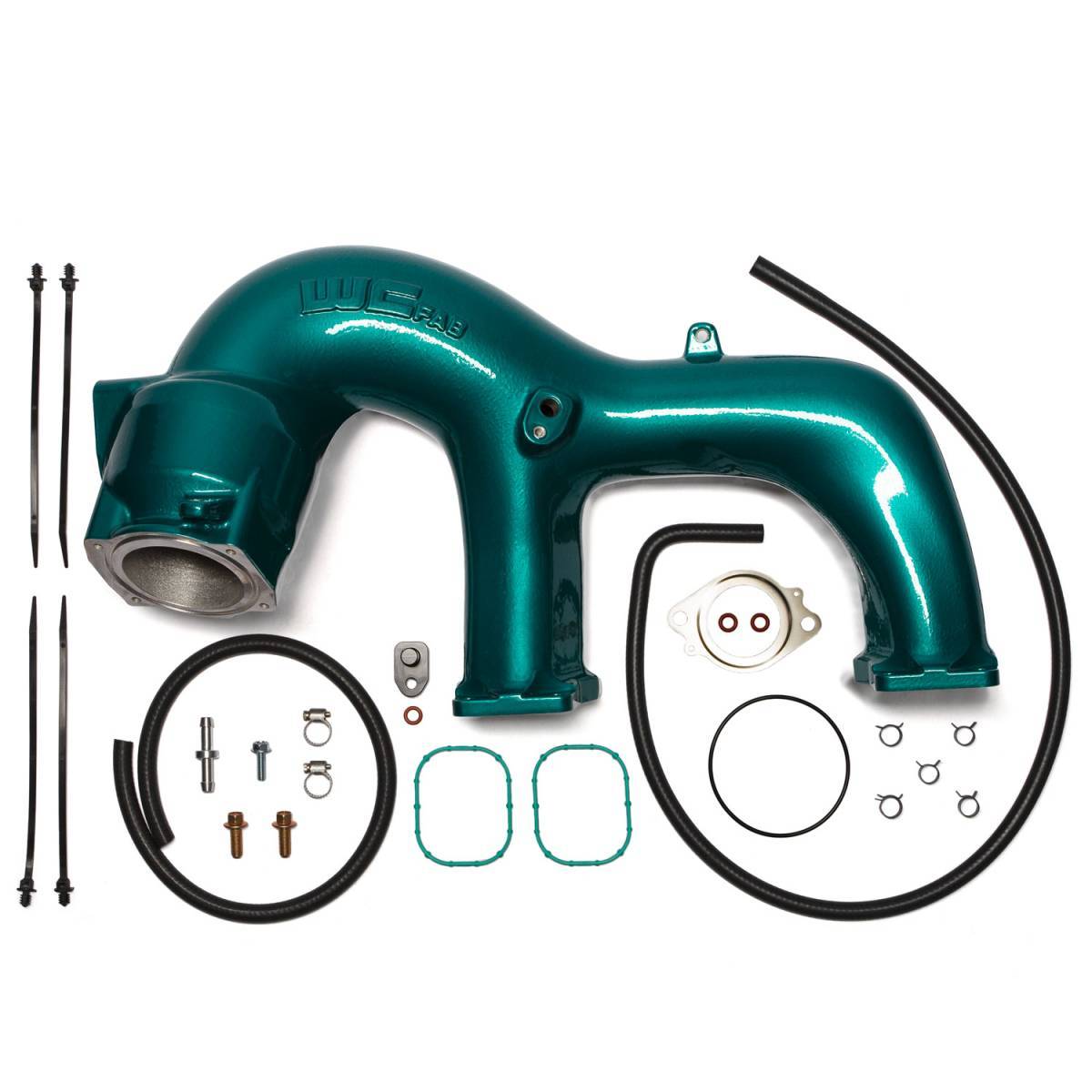

• Complete kit with install hardware, wiring harness mounting points and a billet plug for the unused MAP port
• Durable powder coat finish in your choice of 25 colors

Fitment

2017-2026 Chevrolet Silverado 2500 HD / 3500 HD and GMC Sierra 2500 HD / 3500 HD with the 6.6L L5P Duramax diesel.

Availability

This kit is not in stock at Powertech Diesel. It is built to order by WCFab after you purchase. Gloss Black, Gloss White, WCFab Red, Candy Teal and Illusion Purple usually ship in 3-5 business days; other colors take 10-15 business days. Call us at 208-542-7793 for timing on your color.

Installation instructions (PDF)
