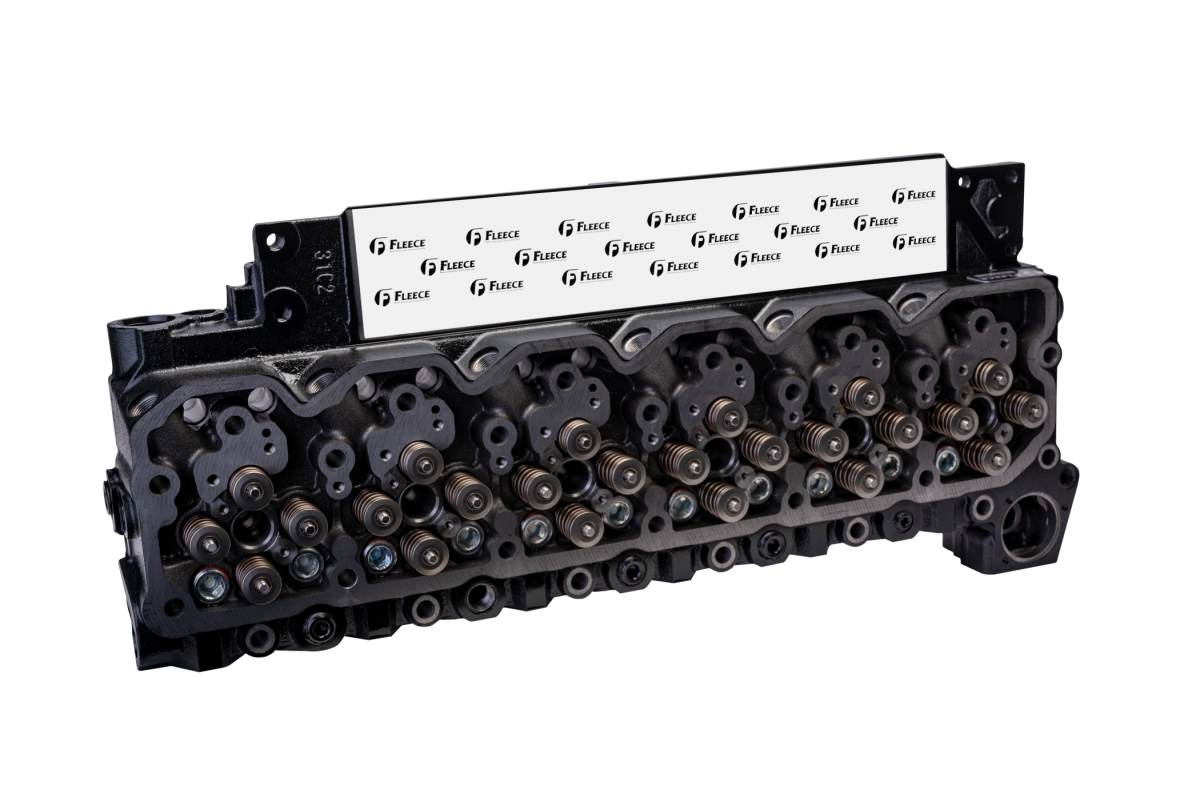

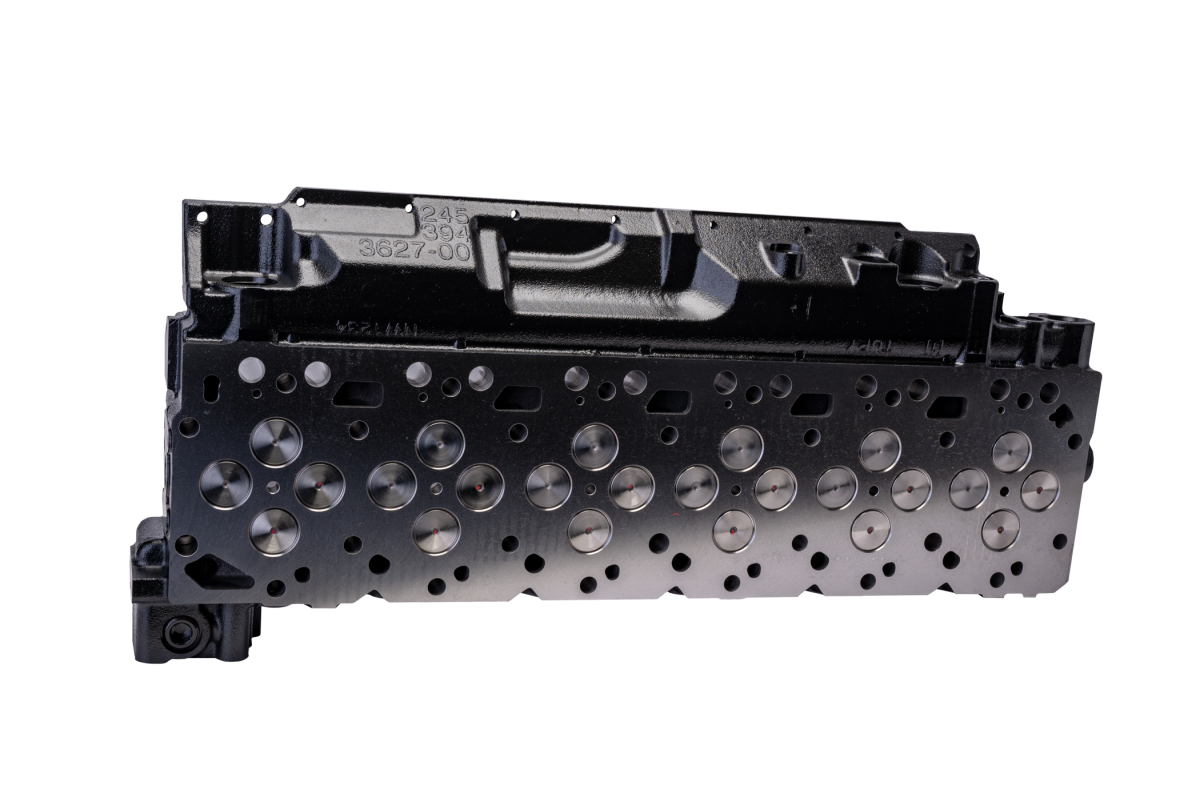

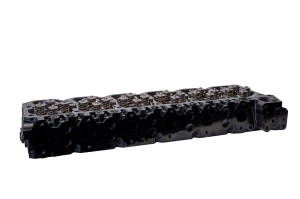

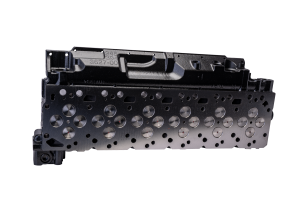

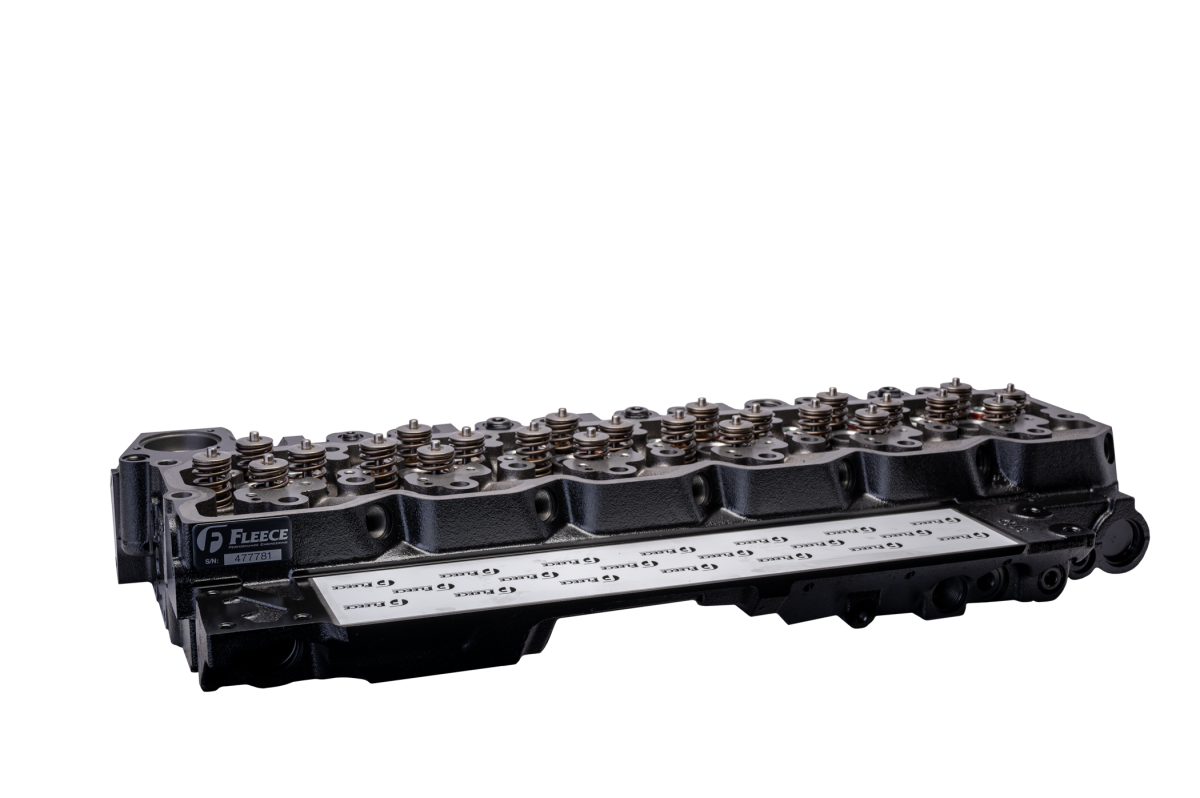

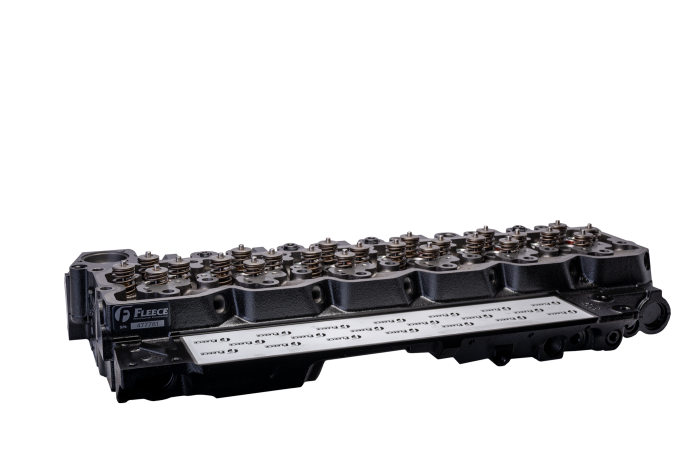

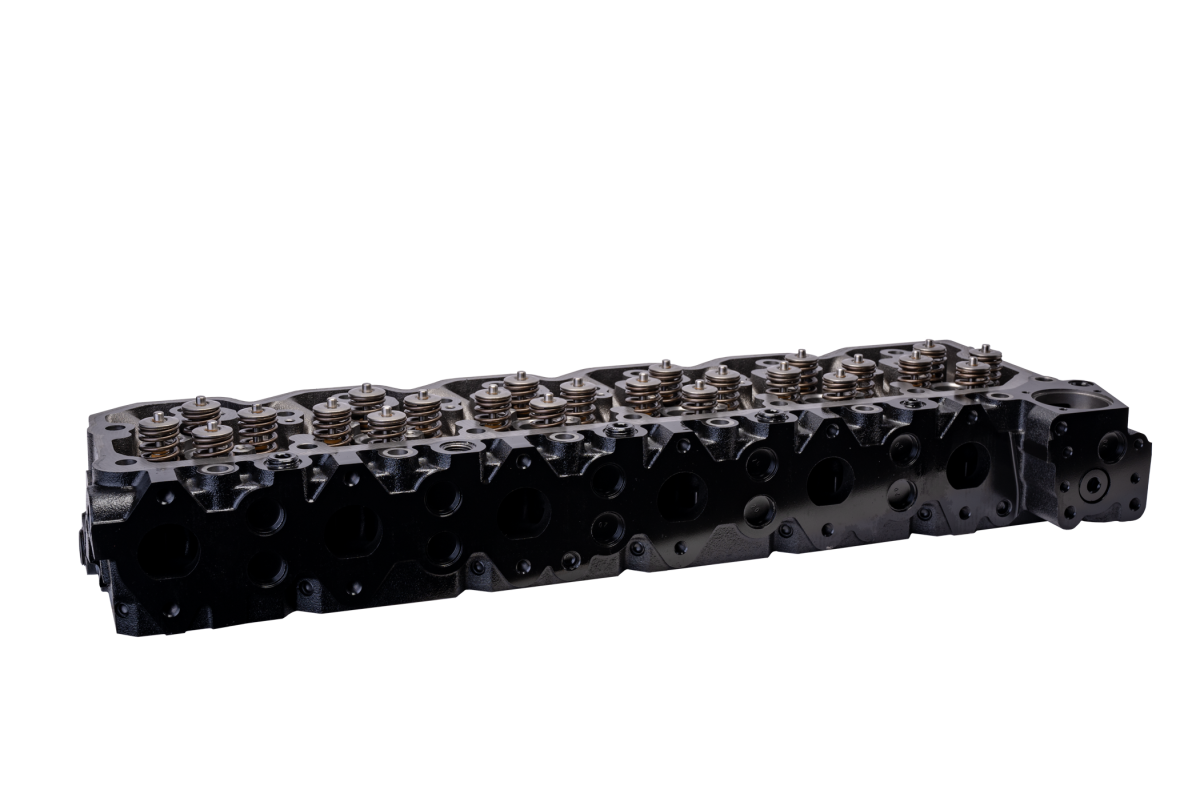

5.9L VP 98.5-02 Freedom Series Cummins Cylinder Head (Street) Fleece Performance
Engine Cylinder Head
Description
A ready-to-run Cummins head
Fleece builds its Freedom Series heads in its own cylinder head machine shop to meet or beat factory specs. Every head is inspected, pressure tested, decked and painted, and it arrives fully assembled and ready to bolt on.
Fleece swaps the factory freeze plugs for 11 screw-in plugs, so the head won't leak coolant under the valve cover. It also gets hardened, oversized press-in valve seats and new valve guide liners.
The Street head is aimed at daily drivers and heavy towing and is rated to 700 hp. If your engine will run past factory RPM limits, Fleece says to step up to its Performance head with stiffer valve springs.
Who it's for
Owners of 1998.5-2002 Dodge Ram 2500/3500 with the 5.9L 24-valve VP44 Cummins who need a replacement or upgraded cylinder head.
Key specs (per Fleece)
| Engine | 5.9L VP44 Cummins, 1998.5-2002 |
|---|---|
| Series | Freedom Series Street |
| Rated to (per Fleece) | 700 hp |
| Valves / springs | New valves, Cummins valve springs and retainers |
| Freeze plugs | 11 screw-in |
| Valve seats | Hardened, oversized, press-in |
| Warranty | 1-year limited parts (Fleece) |
| Shipping weight | 206 lb |
What's included
- Freedom Series Street cylinder head, fully assembled
Fitment notes
- Fits 1998.5-2002 Dodge Ram 2500/3500 with the 5.9L 24-valve VP44 Cummins (per Fleece).
- Head gasket not included; Fleece recommends Cummins 3977063.
- Valve lash must be set during install. Back off the rocker arm adjusters first, or the head will be damaged (per Fleece).
- If you run aftermarket head studs, the lower rocker box cover needs modifying; see the ARP install method instructions Fleece references.
Professional install available at Powertech Diesel, Idaho Falls — call 208-542-7793.
Details
- FPE-61-10009
- FPE-61-10009
- Fleece Performance
- May have a longer lead time.
- New
