Xtrude Transmission Cooler with Fan -10 JIC Male Connection BD Diesel
Automatic Transmission Oil Cooler
1300611

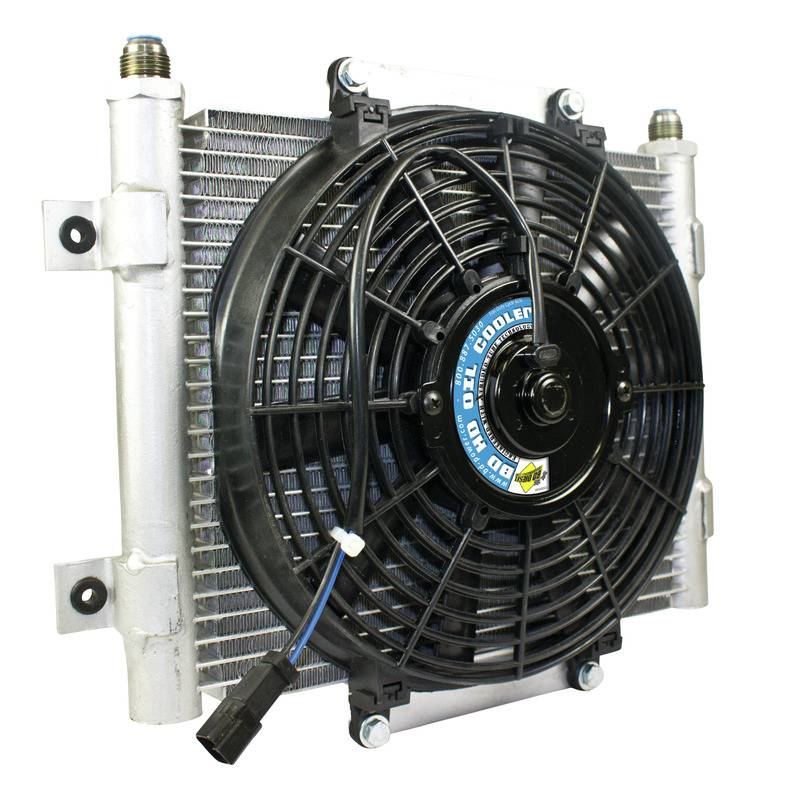

BD Xtrude heavy-duty transmission cooler with 800 CFM electric fan and -10 JIC male connections: 33,930 BTU/hr, rated past 30,000 lb GVW.
Availability: May have a longer lead time.
Pricing:
$354.95
Description
Serious cooling for heavy towing
BD's Xtrude core uses 200 micro-extruded passages and a large surface area, and BD says it cools 22 percent better than other designs. Turbulent oil flow cools more completely, and large 5/8 in ports keep inlet and outlet flow unrestricted.
The furnace-brazed rails are tested to 300 psi. An 80-watt, 10 in, 800 CFM electric fan moves air through it, with an IP54-rated motor and a 65 percent duty cycle. BD rates it at 33,930 BTU/hr for vehicles over 30,000 lb GVW.
Who it's for
Owners of trucks that tow heavy and need more transmission cooling.
Key specs (per BD)
| Core | Xtrude, 200 micro-extruded passages |
|---|---|
| Heat rejection | 33,930 BTU/hr |
| GVW rating | Over 30,000 lb |
| Ports | 5/8 in, -10 JIC male |
| Pressure test | 300 psi |
| Fan | 80 W, 10 in, 800 CFM; IP54 motor, 65% duty cycle |
| Warranty | 12 months / 24,000 miles |
| Shipping weight / box | 8 lb · 18 × 15 × 8 in |
What's included
- Cooler with electric fan (cooler assembly only)
Fitment notes
- Universal cooler; mounting and lines depend on the truck. Ask us what your install needs.
- California: BD says no EO is needed; by design this part is legal in all 50 states.
Professional install available at Powertech Diesel, Idaho Falls — call 208-542-7793.
