BrakeLoc w/Converter Control 1995-2003 Ford 7.3L Automatic Trans BD Diesel

Use the factory valve

BD's BrakeLoc connects to the control wire of the 7.3L's exhaust backpressure valve and turns it into an electronically controlled exhaust brake. It includes BD's AutoLoc to hold lock-up while braking in third and fourth, so all of the retarding force reaches the wheels.

Because the factory valve is hydraulically actuated, expect a 2-3 second delay before braking starts. BD positions BrakeLoc as an economical option, not a replacement for a true exhaust brake; for quicker, stronger braking it recommends a BD exhaust brake.

Who it's for

Owners of 1995-2003 7.3L Power Stroke automatics who want some engine braking on a budget.

Key specs (per BD)

What's included

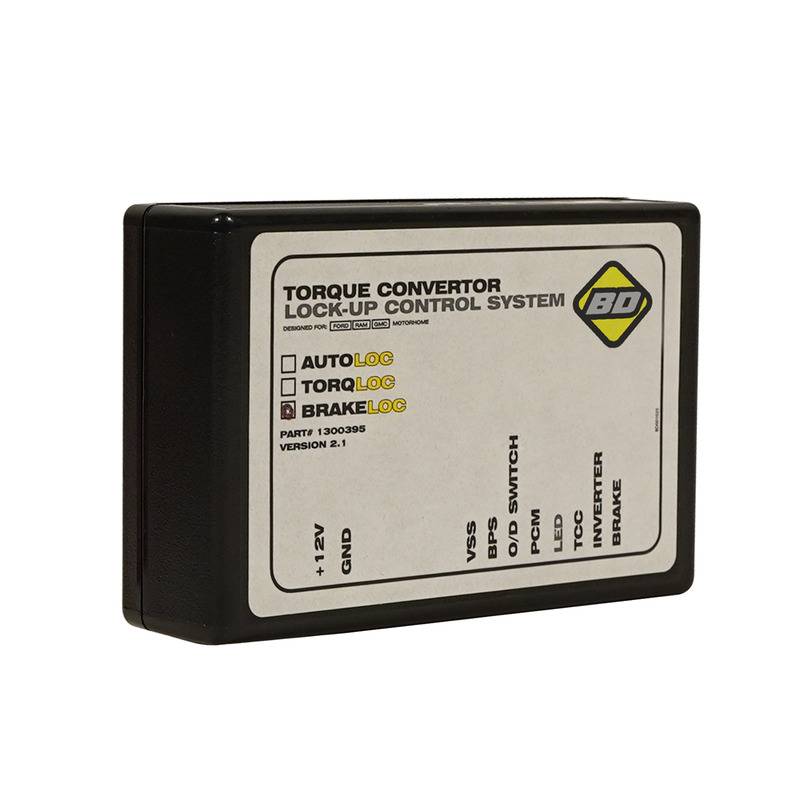

• BrakeLoc controller
• AutoLoc converter control

Fitment notes

• BD lists fitment as 1995-2003 Ford F-250/F-350 with the 7.3L Power Stroke and automatic.
• Not for sale for use on California-licensed vehicles (per BD).

Professional install available at Powertech Diesel, Idaho Falls — call 208-542-7793.
