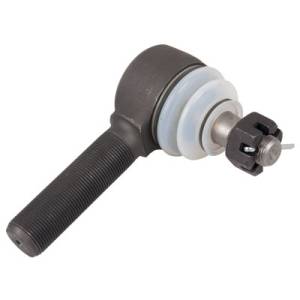

Synergy MFG Dodge Ram HD Single Plane Tie Rod End Metal On Metal 1-14 LH Synergy MFG 4160-L

Steering Tie Rod End

4160-L
*Image may differ from actual product.
Limited Supply: only 6 remaining
Availability: All prices and availability are subject to change without prior notice.
Pricing: $60.00
Qty:

Description

Synergy Dodge Ram HD Single Plane Metal-on-Metal Tie Rod End 1-14 LH

Details:

  • Synergy Dodge Ram Heavy Duty Metal-on-Metal Tie Rod Ends
  • Fully greasable sintered metal on metal bushing design has high wear resistance
  • Specially designed grease grooves in the OD of the ball to allow for maximum lubrication
  • Spring loaded bearing design keeps pressure on bearings and keeps the joint tight as it wears
  • Forged bearing housing made from 1018 steel for a strong, smooth, bearing surface
  • Tie Rod End stud made from 4140 steel with an induction heat treated bearing surface for smooth operation and maximum life
  • Outperforms the factory and all other aftermarket style tie rod ends by offering: A larger shank with no stress riser (doesn't neck down at base), Elimination of the nylon ball race
  • Boots are made from tear/wear resistant black NBR and come with retaining springs. (4133-L, 4136-L, 4138-L, and 4160-L only. 4134-L does not include a dust boot. 4134-L low misalignment boot available separately, 4134-02)
  • Includes all necessary hardware for installation
  • 1-14 UNF LH Thread
  • Synergy High Performance Grease (4119) is the recommended grease for this product
  • Fits: 94-current Dodge Ram trucks with Synergy 8525 or 8725 Steering
  • Sold Individually

Details

Shipping Information

  • Item Requires Shipping
  • 2.0 lbs.
  • W5.0000” x H5.0000” x L7.0000”
