Steering Upgrade Kit Silverado/Sierra Duramax 1500HD 2001-2003 and 2005-2007 and 2500 HD/3500HD Silverado/Sierra 2001-2010 WITH PITMAN/IDLER BD Diesel

Steering that holds up

Big power, lift kits and larger tires load GM HD steering beyond what the factory planned for, leading to loose steering, toe-in under load in 4WD and broken tie rods. BD's kit replaces the linkage with stronger parts.

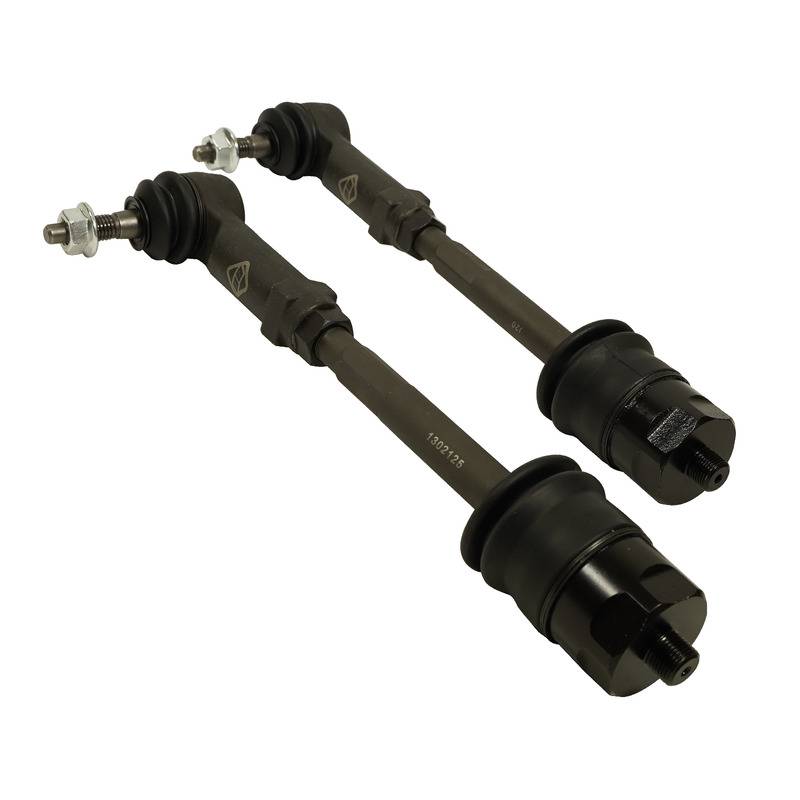

BD rates its forged I-beam centerlink at 30% stronger than the factory part. Its tie rods are 1.5 times as thick as stock and use bigger inner ball joints; BD's testing showed they take more than twice the force of stock rods. Sintered bearings in the ball joints help them carry load and last longer, and every ball joint plus the pitman and idler arms takes grease.

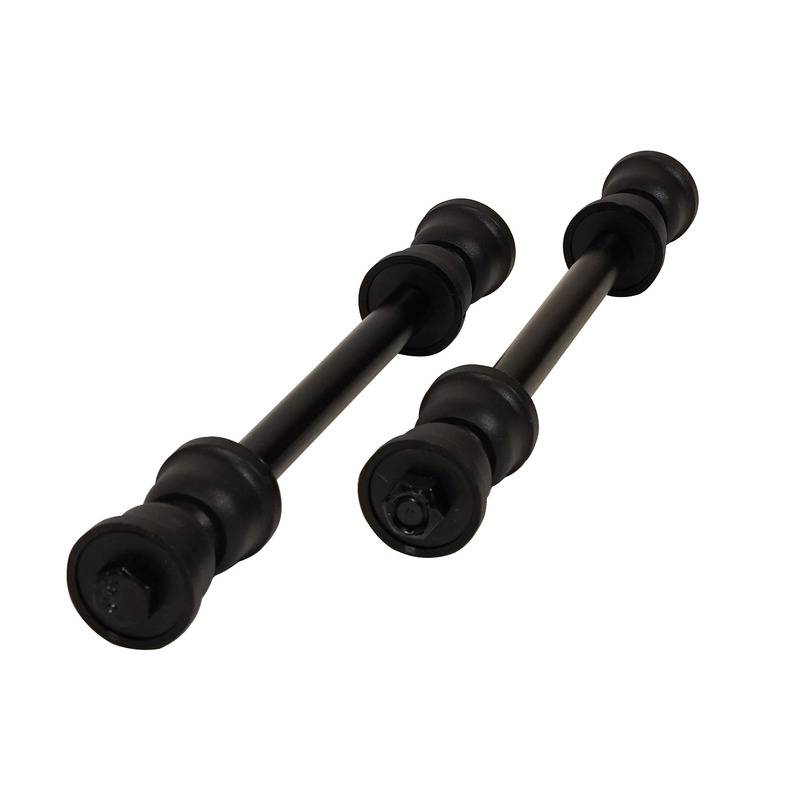

The kit keeps factory steering geometry, so it avoids bump steer and any stock replacement part still fits. Longer through-bolt sway bar end links clear the bigger tie rods and leveling kits.

Who it's for

Owners of Duramax HD trucks that tow, are lifted or run bigger tires and power.

Key specs (per BD)

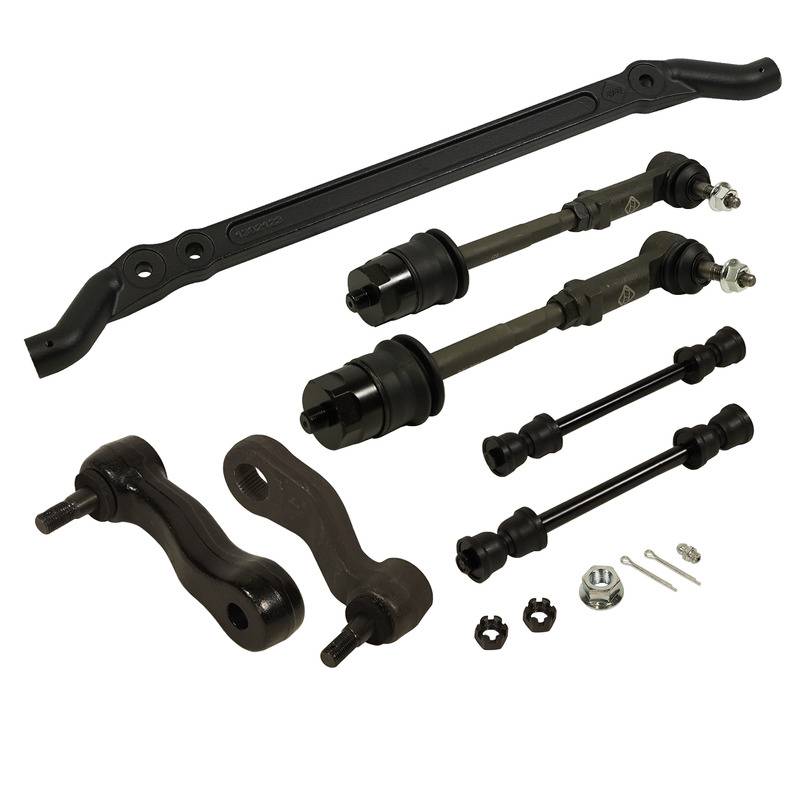

What's included

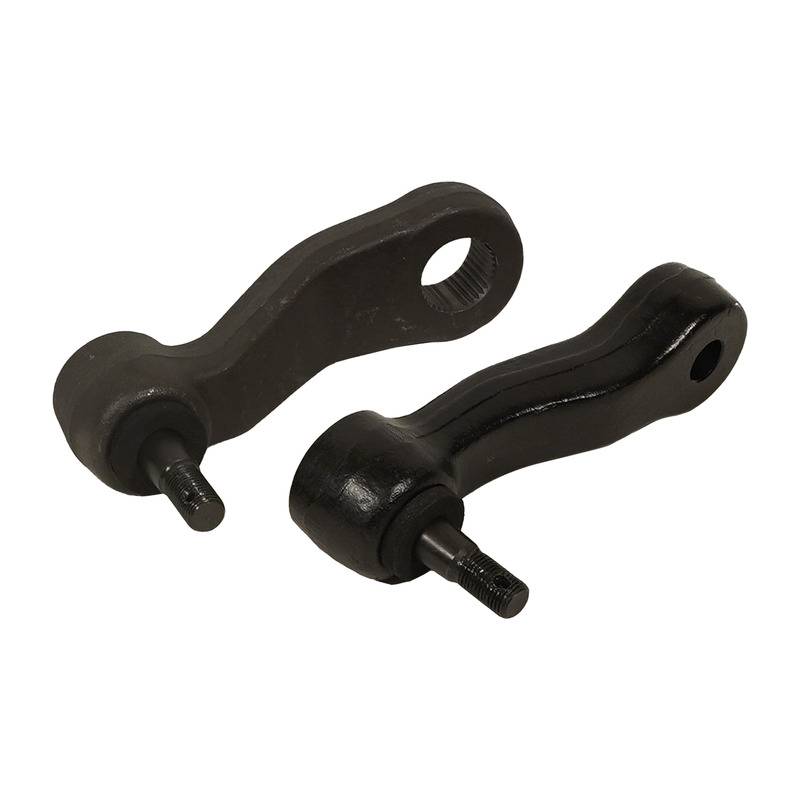

• Pitman arm (3-spline)
• Idler arm
• Forged centerlink
• Sway bar end links (2)
• Tie rods (2)

Fitment notes

• BD's title lists 2001-2003 and 2005-2007 Silverado/Sierra 1500HD and 2001-2010 2500 HD/3500 HD.
• California: BD says no EO is needed; by design this part is legal in all 50 states.

Professional install available at Powertech Diesel, Idaho Falls — call 208-542-7793.
