FASS 01-10 Chevy Duramax 165gph No Drop Titanium Fuel System - NDTSC10165G

FASS No-Drop Titanium Signature Series 165 GPH fuel system

The FASS No-Drop Titanium Signature Series is a frame-mounted lift pump with built-in filtration, sized here at 165 GPH for 2001-2010 Chevy/GMC 6.6L Duramax. It feeds the engine's injection pump with fuel that has already been filtered, dewatered and stripped of air.

Per FASS, the system filters to 2 microns absolute with microglass media, removes more than 99% of water (FASS cites third-party testing), and pulls entrained air and vapor out of the fuel with FASS’s patented separation process.

Fuel the engine doesn’t use goes back to the tank through the filters, so the whole tank keeps getting cleaned as you drive. FASS calls this Mass Flow Return.

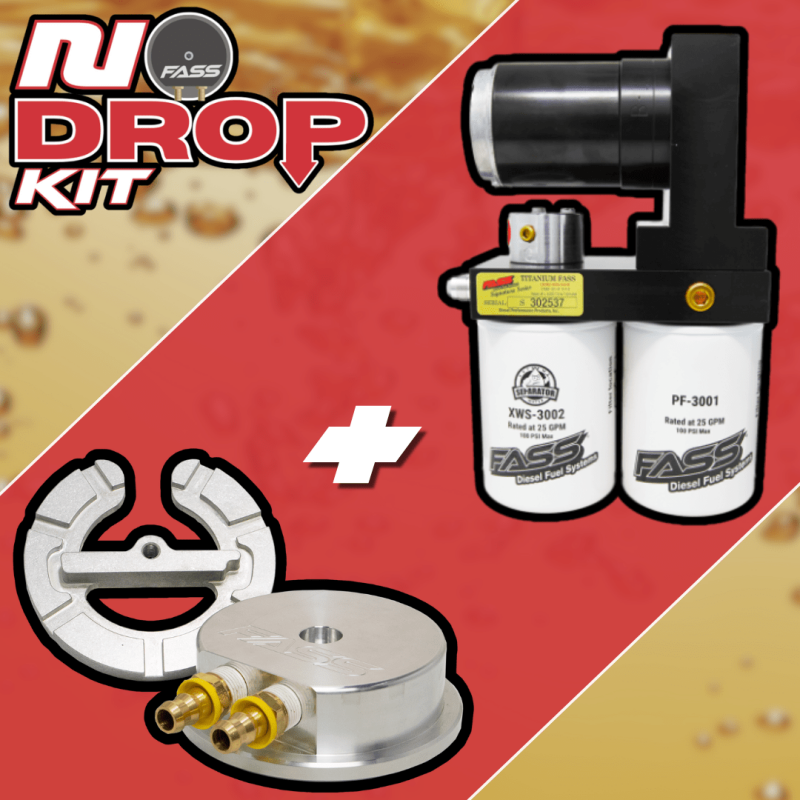

This is the No-Drop version. It comes with FASS’s Single Bolt Fuel Sump in 6061-T6 billet aluminum: drill one hole in the bottom of the tank and bolt the sump in. The sump has both the suction and return ports, so you never have to drop the tank.

Who it's for

Duramax owners, stock or modified, who want cleaner fuel to protect the injectors and injection pump, with water and air pulled out before they reach the engine.

Key specs (per FASS)

What's included

• FASS No-Drop Titanium Signature Series pump and filter assembly (NDTSC10165G)
• Steel mounting brackets
• Single Bolt Fuel Sump Kit
• FASS installation manual

Fitment notes

• Listed by FASS for 2001-2010 Chevy/GMC 6.6L Duramax.
• FASS application list includes: Chevrolet Silverado 2500 HD (2001-2016); GMC Sierra 2500 HD (2001-2016); Chevrolet Silverado 2500 HD Classic (2007); Chevrolet Silverado 3500 HD (2007-2016); GMC Sierra 2500 HD Classic (2007); GMC Sierra 3500 HD (2007-2016).
• FASS electric fuel heater kits are optional and sold separately.
• No-Drop install requires drilling one hole in the bottom of the fuel tank for the sump.
• Pick the flow size that matches your power level; check year and engine against the FASS listing before ordering.

Professional install available at Powertech Diesel, Idaho Falls — call 208-542-7793.
