South Bend Clutch G56-OFEK Organic/Feramic Clutch Kit with Flywheel & Hydraulics 2005.5-2018 Ram 5.9L/6.7L Cummins G56
G56-OFEK
South Bend Clutch G56-OFEK single-disc clutch kit for 2005.5-2018 Ram 2500/3500 5.9L and 6.7L Cummins with the G56 6-speed. Includes 13 in. organic/feramic clutch, solid flywheel and HydX .750 hydraulic assembly.
Limited Supply: only 4 remaining
Availability: All prices and availability are subject to change without prior notice.
Pricing:
$1,537.72
Description
Complete G56 clutch swap in one box
The South Bend Clutch G56-OFEK kit replaces the clutch, dual-mass flywheel and hydraulics on 2005.5-2018 Ram 2500 and 3500 trucks with the 5.9L or 6.7L Cummins and the G56 6-speed manual. South Bend pairs an organic facing on one side of the disc with a feramic facing on the other for near-stock engagement and high torque capacity.

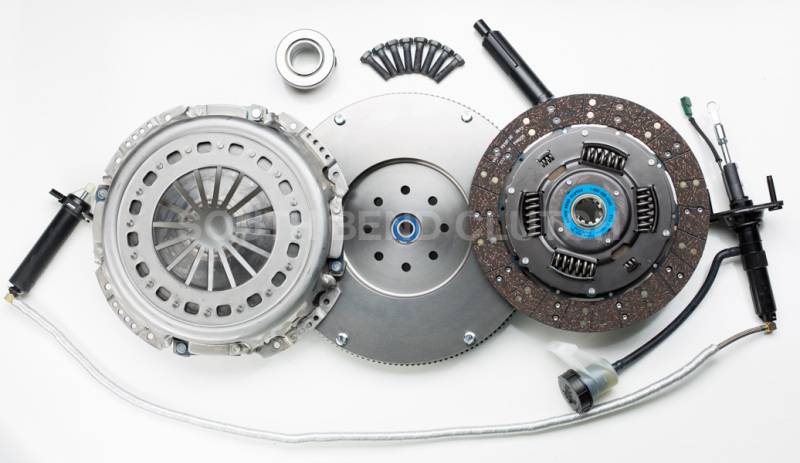

What's in the kit
- 13 in. organic/feramic clutch disc and pressure plate
- Solid flywheel that replaces the factory dual-mass flywheel
- HydX .750 adjustable hydraulic assembly
- Throw-out bearing
- Heavy-duty pilot bearing
- Flywheel (crank) bolts
- Alignment tool
Fitment
2005.5-2018 Dodge/Ram 2500 and 3500 with the 5.9L or 6.7L Cummins and G56 6-speed manual transmission.
Specifications (per South Bend Clutch)
| Part number | G56-OFEK |
|---|---|
| Clutch type | Single disc, organic/feramic (one organic face, one feramic face) |
| Disc diameter | 13 in. |
| Rated capacity | 475 hp / 1,000 lb-ft |
| Flywheel | Solid flywheel (replaces the factory dual-mass flywheel) |
| Hydraulics | HydX .750 adjustable hydraulic assembly |
| Transmission | G56 6-speed manual |
Install notes
- Pressure plate to flywheel: 20 ft-lb, tightened in a star pattern
- Flywheel to crank: 95-105 ft-lb with threadlocker
- On 2005.5-2008 trucks, the plate behind the factory dual-mass flywheel must be removed from the crank
- Professional installation is recommended
Details
- G56-OFEK
- G56-OFEK
- Southbend Clutch
- Available
- All prices and availability are subject to change without prior notice.
- New
Shipping Information
- Item Requires Shipping
- 112.2 lbs.
- Free Ground Shipping on orders over $150.00 (excludes HI and AK)
